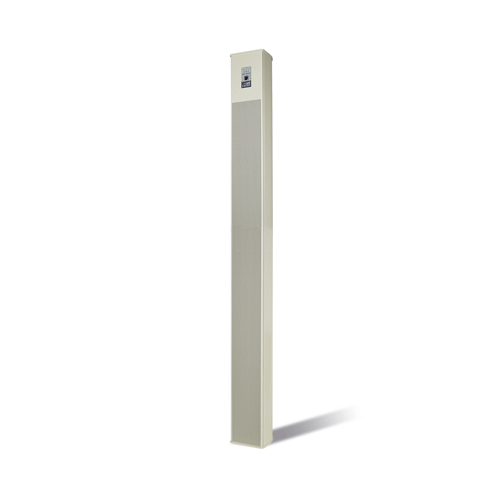

ACD-3012
DSP Active Line Array Speaker
Description
- Nº. of speakers: 12 (4″)
- Reach (coverage uniform SPL ): +40 meters.
- Output power: 360 W.
- Acoustic pressure (at 30 metros): 91 dB SPL
- Input sensibility: 0dB / L100V
- Max angle inclination: +/- 45 positions (45º)
- Angle of horizontal coverage: 140º
- Dimensions: 1666 x 150 x 139 mm.
- Color: Ivory white (RAL 1015)
- Incorporates:
- Volume control of audio outputs
- Adjustments of bass and treble
- Input sensibility adjustment
- 15 bands graphic equalizer
- Mute
- The adjustment of the different features is done in real time by using the configuration interface WCD-3000. This allows an easy and interactive configuration to the installer.
Once the configuration of all features is done, they are automatically save in nonvolatile memory.
