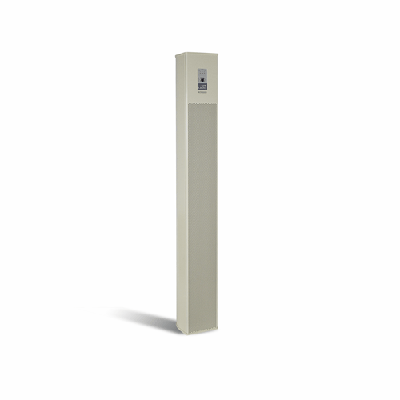

ACD-3008
DSP Active Line Array Speaker
Description
- ACD-3008 Self Powered Line Array
- Number of speakers: 8 (4″)
- Reach (coverage uniform SPL ): +30 meters.
- Output power: 240 W.
- Acoustic pressure (at 30 meters): 90 dB SPL
- Sensibility Input: 0dB / L100V
- Angle max inclination:: +/- 45 positions (45º)
- Angle of Horitzontal coverage: 140º
- Dimensions: 1134 x 150 x 139 mm.
- Colour: Ivory (RAL 1015)
- Incorporates:
- – Control of the volume and the audio outputs
- – Adjustment of Bass and treble
- – Ajustment of the Input sensibility
- – Graphic equalizer of 15 bands
- – Mute
- The adjustment of the different features is done in real time by using the configuration interface WCD-3000. This allows an easy and interactive configuration to the installer.
Once the configuration of all features is done, they are automatically save in nonvolatile memory.
