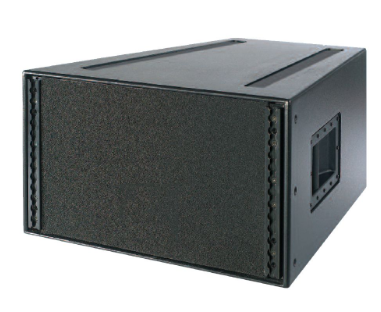

ALPHA-7530EN
High power speaker module
The Alpha-7530EN is a high power Mid/Hi module using an exponential horn loaded 10” MF driver and a constant directivity horn loaded 3” HF driver giving 75° x 30° dispersion. Operable 2-way passive for cost-effective system designs or 2-way active for ultimate performance and control. The Alpha-7530EN has a frequency response of 220 Hz - 19 kHz and the modules deliver outstanding performance as a compact, arrayable medium scale system.
High power Mid/Hi module (140 dB peak SPL @ 1m) with horn loaded 10” MF and 3” HF components
75° x 30° dispersion
Transformer: 200 or 400 W at 100 V line (integrated in the waterproof cover)
Frequency response 220 Hz - 19 kHz +/- 3 dB
Configurable for passive or active 2-way operation
Baltic birch cabinet and high performance honeycomb composite construction
EN54-24 certified
The Alpha-7530EN is a high power Mid/Hi module using an exponential horn loaded 10” MF driver and a constant directivity horn loaded 3” HF driver giving 75° x 30° dispersion. Operable 2-way passive for cost-effective system designs or 2-way active for ultimate performance and control. The Alpha-7530EN has a frequency response of 220 Hz - 19 kHz and the modules deliver outstanding performance as a compact, arrayable medium scale system.
High power Mid/Hi module (140 dB peak SPL @ 1m) with horn loaded 10” MF and 3” HF components
75° x 30° dispersion
Transformer: 200 or 400 W at 100 V line (integrated in the waterproof cover)
Frequency response 220 Hz - 19 kHz +/- 3 dB
Configurable for passive or active 2-way operation
Baltic birch cabinet and high performance honeycomb composite construction
EN54-24 certified
Description
Spécifiaction pour le produit:
| ALPHA-7530EN | |
|---|---|
| Réponse en fréquence |
220 Hz - 19 kHz (±3 dB) |
| Connecteur |
2x NL8MP 8-pole SPEAKON (In & Loop Thru) Passive: 1+ & 1- (VLF), 2+ & 2- (LF), 3+ & 3-(MF/HF), 4+ & 4- (NC) Active: 1+ & 1- (VLF), 2+ & 2- (LF), 3+ &3- (MF), 4+ & 4- (HF) 1x NL4MP 4-pole SPEAKON (to B1-18 & S2) Wiring: 1+ & 1- (VLF), 2+ & 2-(LF) |
| Sensibilité (1 W à 1 m) |
107 dB (Nominal Peak SPL@1 m: 140 dB) |
| Composant du haut-parleur |
MF: 1x 10” (25 cm) 8Ω 3” voice coil driver + Dual Ring Phase Plug, Composite Horn HF: 1x 3” titanium diaphragm ceramic driver + Coaxial Mount Waveguide |
| Impédance nominale |
8 Ω |
| Finition |
gris foncé |
| Poids |
45 kg |
