AL310-B
DESCRIPTION

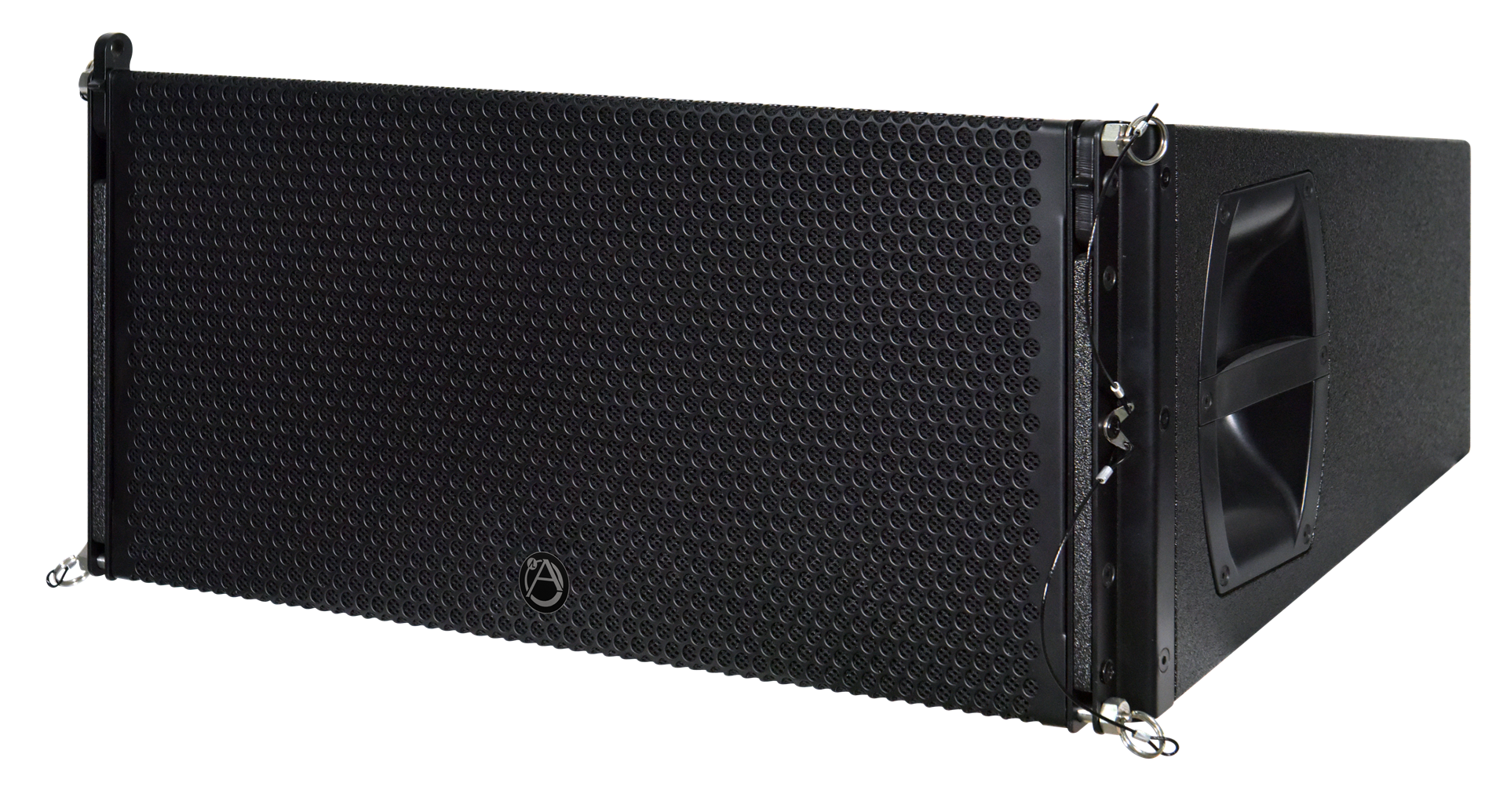

The AtlasIED AL310-B is a 3-way passive design housing 2 x 10" LF drivers, one horn loaded 8" MF driver and two 1.4" exit HF compression drivers with 3" voice coils mounted to a dedicated wave-shaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. The mechanical and acoustical design enables flown vertical arrays of up to twenty-four loudspeakers. It can be used in columns of purely AL310-B loudspeakers or combined with AL1812-B. The AL310-B cabinet is constructed from plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel incorporates a handle, while two additional recessed grips are provided at the rear bottom of the cabinet.
- 3-way passive system
- Small in size, high in power
- Use neodymium LF, MF & HF driver
- High sound pressure level, suitable for medium to large-sized venues
- Waterproof polyurea coating, suitable for outdoor performances
- Can be combined and suspended with the AL1812-B subwoofer
- Multi-purpose halls
- Banquet halls
- Large auditoriums
- Conference halls
- Exhibition halls
- Command centers
- Large outdoor venues
| Type | 3-Way, Full Range, Line Array Loudspeaker |
| Components | 2 x 10” Neodymium LF; 1 x 8” Neodymium MF; 2 x 1.4” Neodymium Exit HF |
| LF Power (RMS) & Impedance | 300W / 16Ω x 2 |
| MF Power (RMS) & Impedance | 150W / 16Ω |
| HF Power (RMS) & Impedance | 160W / 16Ω |
| Frequency Response (-5dB) | 67Hz - 18kHz |
| Maximum SPL (1M) | 139dB |
| Nominal Dispersion Angle (Horizontal) | 80° |
| Splay Angle Settings | 0° - 14° (1° increment) |
| Connectors | 2 x NLT8 (LLF: 1-/2+; RLF: 3-/4+; MF: 5-/6+; HF: 7-/8+) |
| Dimensions (HxWxD) | 310mm x 700mm x 460mm |
| Weight | 34kg |
| Optional Fly Frame | LFF310 |
