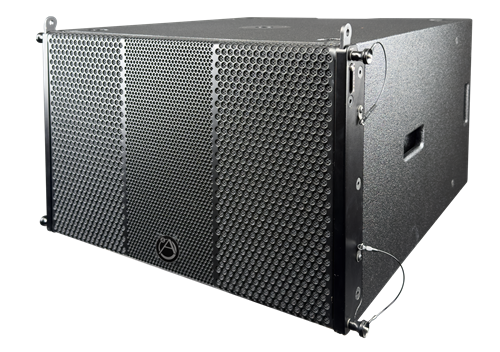

AL215-B
Dual 15" Line Array Subwoofer
Description
DESCRIPTION
Housing two 15" woofers within an innovative enclosure, the AL215-B boasts a hybrid construction that brings together the advantages of bass reflex and horn loaded subwoofer design - high efficiency, a superb range and the ability to reach extraordinarily low frequencies. The unique design engages the subwoofer's entire front baffle to enhance the acoustic field while reducing friction and minimizing losses. The result is an impressively efficient signal to noise ratio, faithful low-end reproduction and excellent dynamic coverage.
Features
- High-performance reflective subwoofer
- Small in size, high in power
- High sound pressure level, suitable for mediumto large-sized venues
- Waterproof polyurea coating, suitable foroutdoor performances
Applications
- Multi-purpose halls
- Banquet halls
- Large auditoriums
- Conference halls
- Exhibition halls
- Command centers
- Large outdoor venues
SPECIFICATIONS
| Type | Dual 15” passive line array subwoofer |
| Components | 2 x 15” LF driver |
| Power (RMS) & Impedance | 800W / 4Ω |
| Frequency Response (-5dB) | 45Hz - 120 Hz |
| Sensitivity | 102dB |
| Maximum SPL (1M) | 131dB |
| Nominal Dispersion Angle (Horizontal) | Omni |
| Connectors | 2 x NL4 (±1) |
| Dimensions (HxWxD) | 446mm x 710mm x 795mm |
| Optional Fly Frame | LFF215;LFF1512(Used with AL112-B) |
