ML22T Pro
Pupitre de conférence avec écran tactile 22" au dessus.
Description

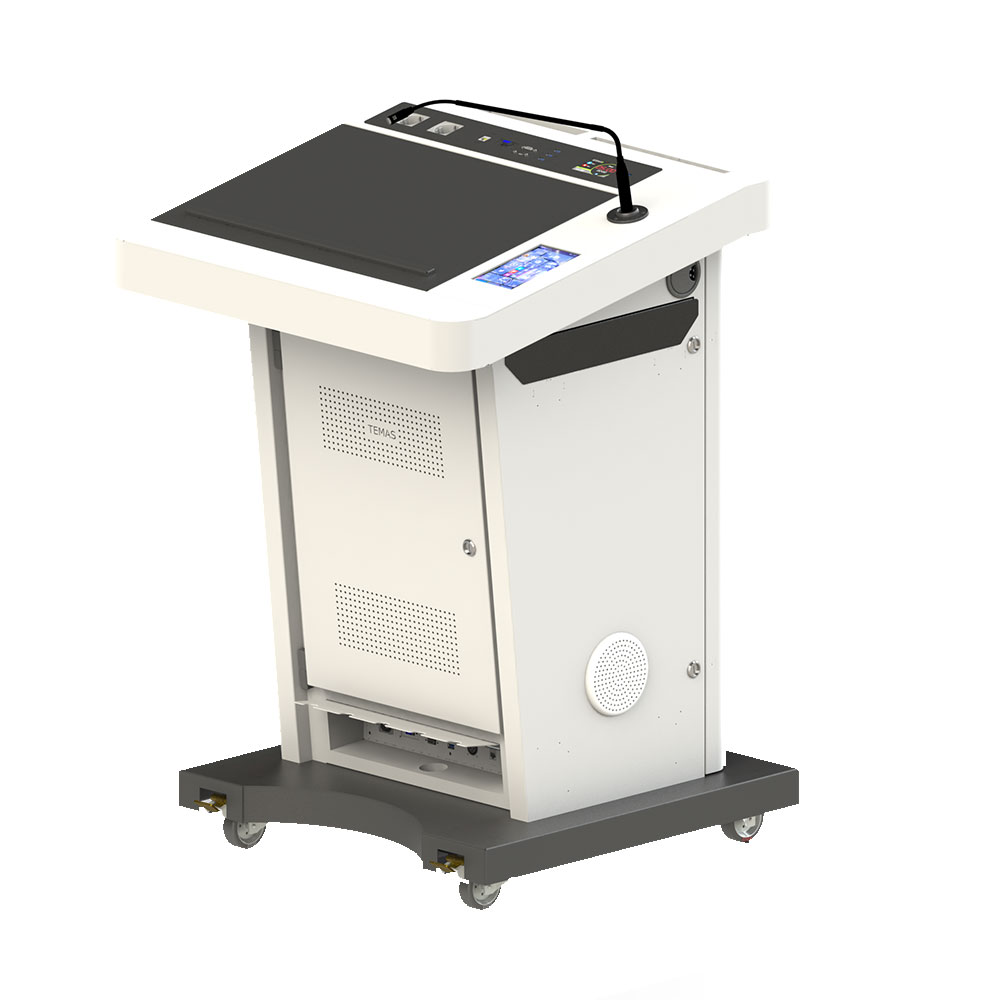

ML22T Pro Digital Podium
ML22T PRO covers your professional presentation requirements and complex needs with its complete solutions. Sliding top panel both protects your touch display and becomes a platform for your documents, laptop. Multi-purpose complete connector panels give ability to access to power, external projector and display devices, Speakers can convey their voice through meeting rooms. and lecture halls. It is equipped with personal computer with the ML22T PRO, which has a wide body large enough to be able to harbor all types of sound and imaging devices and a front and back service cover, you can gather all your conference devices into one place without needing an external space
- MultiTouch Speaker Screen
- Player PC : Intel i3 4GB, 120 GB SSD Win 10 Embedded iot OS
- Tablet Control
- Switcher & Scalar (HDMI & VGA in)
- Stereo Amplifier
- Speakers
- Microphone
- Creapen Annotation
- Digital Touch Timer
| Model: | ML22T Pro |
| Main Specifications | |
| Speaker Screen | 22″ Full HD Multi Touch Capacitive Touch Screen |
| Built-in PC for Speaker Screen | intel i3 4GB Ram, 120 GB SSD, Win 10 Embedded ioT |
| Switch | Geratech EGE-SCA-HDB-HVGDP |
| Scalar | HD video scaler with HDMI output and input resolution control |
| Source selection | Automatic input selection and automatic display control |
| Sliding cover | Available for top podium with lock |
| Microphone | 1 pcs 18″ Shure Gooseneck Condenser Microphone |
| Tablet controller | Available |
| Detailed Specifications | |
| Lecturer Panel | 22″ |
| Screen Specifications | |
| Resolution | 1920×1080 FHD |
| Brightness | 250 cd/m2 |
| Panel Type | IPS |
| Aspect ratio | 16:9 |
| Touch Technology | Capacitive |
| Touch Points | 10 points |
| Lecturer Panel PC Specifications | |
| CPU | 4th Generation Intel Core i3 |
| RAM | 4 GB DDR4 |
| HDD | 120 GB SSD |
| Operating System | Windows Embedded 10 IoT |
| Tablet Controller | |
| Layout size | 181mm(L)×108mm(W)×9.3mm(H) |
| Active Area (A.A.) | 164.90mm(L)×100.00mm(W) |
| Visual Area (V.A.) | 154.08mm(L)×85.92mm(W) |
| Resolution | 800×480 pixel Also can be set as 480×800 |
| Touch type | Capacitive |
| Touches | 1 million |
| Backlight | LED |
| Backlight lifetime (Average) | 30,000 Hours |
| Brightness | 300nit 0% to 100%, the interval of adjustment is 1% |
| Microphone | |
| Length | 18″ |
| No of microphone | 1 pcs |
| Output Connector | 3-way XLR (Male) |
| Microphone Type | Cardioid |
| Frequency Response | 50 -18 kHz |
| Sensitivity (at 1,000Hz) | -60dB ± 3dB |
| Impedance | 220Ω |
| Power ON indicator | LED |
| Power requirement | Phantom Power (48V) |
| Timer & Chronometer | |
| Screen size | 3,5″ |
| Clock | Available |
| Timer | Available |
| Stopwatch | Available |
| Touch | Single touch |
| Inputs | |
| VGA | Available (On desk for Laptop) |
| Sound | 3,5mm jak (On desk for Laptop) |
| HDMI | Available (On desk for Laptop) |
| Mini DP | Available (On desk for Laptop) |
| Ethernet | Available (On desk for Laptop) |
| 230V Plug (Max 5A) | Available (On desk for Laptop / mobile phone charge) |
| USB | USB 2.0 and USB 3.0 (for internal PC) |
| Outputs (Bottom of Podium) | |
| HDMI | Available |
| Ethernet | Available |
| XLR for microphone | Available |
| USB | USB 2.0 (for internal PC) |
| Power | |
| Power Input | 230V 50Hz |
| Power Consumption | 625W (max) |
| Peripherals &other features | |
| Color | Grey (RAL 7047) |
| Services door | two sided servis door |
| Packing | Wooden box export packing |
| Mechanical Specs | |
| Outline Dimension (mm) | Set: 754 x 810 x 1049 |
| Package: 890 x 906 x 1255 | |
| Weight (kg) | Set: 110 kg |
| Package: 168 kg | |
| Optional features | Flight case |
