VIZ315

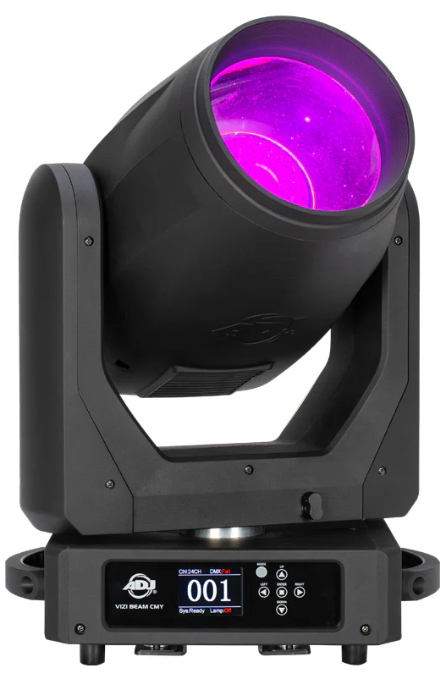

The ADJ Lighting Vizi Beam CMY is a high-performance moving head beam fixture that features a 310W Osram Sirius HRI discharge lamp, CMY color mixing and a wealth of advanced features for the modern lighting professional.
Description
Specifications
Light Source:
- OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
- Color temperature: 7850K (+/- 500K)
- CRI: 86 (+/- 5)
Features:
- CMY Color Mixing
- On-Board Wireless DMX
- Motorized Focus + 16-bit fine focus
- 2-degree beam angle
- Frost Filter to create wash effect
- High quality glass lens
- 2 Rotating prisms
- 3-Phase High Speed Motors
- 0-100% smooth dimming
- Pan/Tilt locks
- Various strobe speeds
- OTA, wireless, firmware updates
- Fan cooled
Color Wheel:
- 14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) UV)
- Indexable color wheel for split colors
- Separate Multi-Color Effect
GOBO Wheel:
- 17 static GOBOs + open (4 GOBOs are beam reducers)
- GOBO Shake Effect
Prism Wheels:
- 2 Rotating prisms
- 16 facet circular and 6 facet linear prisms
- Prisms Overlay
Control:
- Protocols: DMX512 RDM
- Control Mode: DMX512 Manual (On-board Controls)
- 2 DMX Channel Modes: 20/24 Channels
- Aria X2 Wireless Management / DMX System
- Color LCD display with 4-button function menu
- 0-100% smooth dimming
- Various strobe speeds
- With Wired Digital Communication Network
Pan/Tilt:
- Pan: 540 degrees (plus 16-bit fine pan)
- Tilt: 270 degrees (plus 16-bit fine tilt)
- 3-phase, High Speed, Pan/Tilt motors
Connections:
- DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
- Power Connections: Outdoor locking In/Out connections to daisy chain power
Electrical:
- Multi-voltage operation: 100-240V, 50/60Hz
- Max power consumption: 410W (@120V), 390W (@230V)
- Fuze Protected: 6.5A
Dimensions Weight:
- Dimension: 9.8” (L) x 14.3” (W) x 17.9” (H) / 248 x 364 x 454.8mm
- Weight: 38.5 lbs. / 17.5 kg.
Approvals / Ratings
- CE
- cETLus (Control # 5028947)
- FCC
What’s Included:
- 2x Omega Brackets (107 Type)
- 2M, outdoor locking 14AWG power cord
Accessories (Sold Separately):
- DRC MHX - Dual Moving Head Road Case
- Quick Rig Clamp
- Quick Rig Clamp BLK
- Pro-Clamp
- Accu-Cable Tour Link 5P15 - 15ft. 5-pin male/female professional grade DMX Cable
- SIP152 - 16ft., IP65-Rated male to female locking power cord
Specifications are subject to change without notice.
