VIZ290

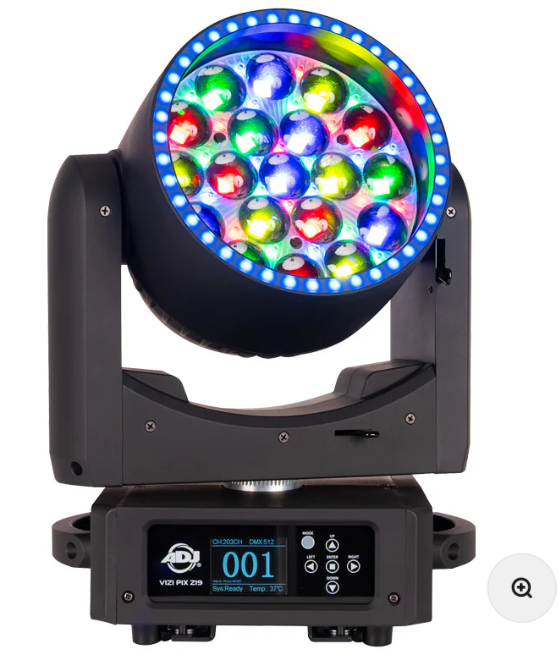

Vizi Pix Z19 is a cutting-edge tool for modern lighting designers, delivering a stunning array of dynamic effects and advanced virtual CMY color mixing for an unforgettable live experience. Featuring 19x 30-Watt RGBL LEDs, vibrant RGB background LEDs, and an innovative LED ring, it creates immersive beams, washes, and vibrant color effects that captivate audiences.
Description
Specifications
Optical (Foreground LEDs):
• 19x 30W RGBL (4-IN-1) LEDs
• 30,000 Hour Average LED Life
• CRI: 86
• 15,000 Lux (Zoomed In to 7° @ 5 meters)
• 7° to 42° Beam Angle
• 9° to 60° Field Angle
Optical (Background LEDs):
• 30x 0.5W SMD RGB LEDs
• 50,000 Hour Average LED Life
Optical (Ring LEDs):
• 40x 0.5W SMD RGB LEDs
• 50,000 Hour Average LED Life
Features:
• Moving Light Pixel Wash with Effects
• Individual Pixel Control (Foreground & Background LEDs)
• RGB LED Ring
• Built-In Pixel Effect Programs
• Aria X2 Wireless Management System
• Electronic Strobe / Dimmer
• Pan/Tilt: 630/540 x 270
• Motorized Zoom
• Color Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Fan Cooled
Colors:
• 19x RGBL LEDs (Red, Green, Blue and Lime)
• 70x RGB LEDs (Red, Green and Blue)
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros
• 2,700K ~ 10,000K Linear White Color Temperature Control
• Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
Effects:
• 19x 30W RGBL (4-IN-1) Foreground LEDs, Fully pixel mappable
• 30x 0.5W RGB Background LEDs, Fully pixel mappable
• 40x 0.5W RGB Ring LEDs, three channel control
• Variable Strobe & Pulse effects (0.5Hz to 33Hz)
• Motorized Zoom (7° to 42°)
Connections:
• Seetronic, IP65 locking power In & Thru Connections
• Seetronic, IP20 5-pin In & Out DMX Connections
• 2x IP20, RJ45 network ports
Control:
• Aria X2 Wireless Management System
• DMX-512
• RDM (Remote Device Management)
• Artnet
• sACN
• 7 DMX Control Modes: 32 / 43 / M1 58 / M2 58 / 203 / 123 & 133 channels
• Built-In Effect Pixel Programs with Speed and Fade Control
• With Wired Digital Communication Network
Pan/Tilt:
• Pan: 630 or 540 degrees
• Tilt: 270 degrees
• 16-Bit Fine Pan & Tilt
• Pan & Tilt Locks
Electrical:
• Multi-voltage operation: 230, 50Hz Only
• Max power consumption: 730W (6.64Amps) @ 120V. 690W (3.04Amps) @ 230V.
Dimensions & Weight:
• Dimensions (LxWxH): 12.2”L x 9.0”W x 16.0”H (310x230x408mm)
• Weight: 22.6lbs (10.1kg)
What’s Included:
• 108mm Omega Brackets (2x)
• 1x 2M, IP65-rated locking power cable
Approvals / Rating:
• cETLus (Control # 5028947)
• CE Certified
• FCC
• IP20
Specifications are subject to change without notice.
