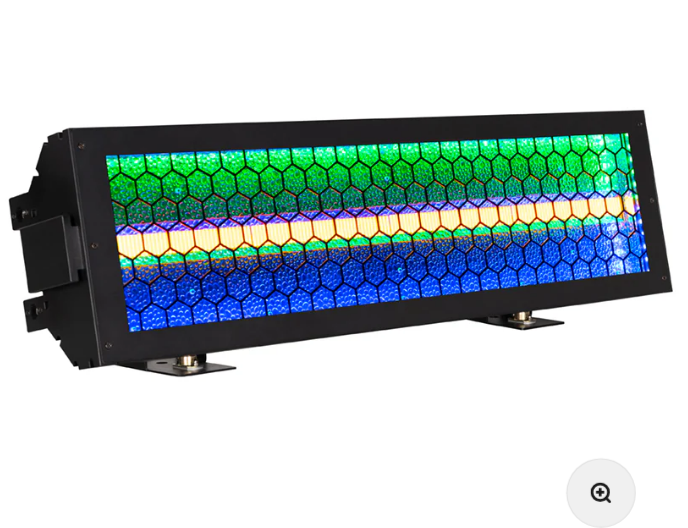

VIN150
Vintage Bar combines a retro amber blinder effect with vibrant RGBL background LEDs, offering rich multi-color eye candy effects and smooth dimming. With advanced strobe, pixel control, and versatile connectivity, it’s perfect for creative stage and event lighting setups.
Description
Specifications
Main Technical Parameters:
Primary Light Source: 4 pcs high-power 150W COB amber LED
- CCT: 2000K
- Lumens: > 27,000
- Lux: 647 @ 5 meters
- CRI: 70
- Field Angle: 160°
Background Light Source: 120 pcs SMD 5050 RGBL LEDs (0.8W each)
- Configured into 20 pixel groups (6 LEDs per group)
Dimmer: 0-100% linear dimming system
Special Effects:
- Powerful strobe, 0.5 to 33Hz
- Unique retro RGBL background effect
- Silent operation with low noise
Additional Features:
- Aria X2 Management System
- Flicker-free
- OLED display with a 4-button touch menu
- Capable of interlocking multiple units together
Control Modes:
- Primary/Secondary synchronization
- Stand-alone mode
- DMX512 control mode
- 10 DMX Channel Modes (5/6/8/14/17/18/84/88/90/97 channels)
- DMX, RDM, sACN and Art-NET protocol support
Connections:
- IP20 indoor 5-pin DMX Input and Thru
- IP20 indoor RJ45 Ethernet
- IP65 outdoor power locking Input and Thru
Dimensions & Weight:
- Dimensions (LxWxH): 35.75x11.50x10.12” / 908x292x257mm
- Weight: 41.89lbs. (19kg)
Power:
- Input: AC100-230V/50Hz-60Hz
- Power Consumption: 780W @120V, 750W @ 230V
- Power Link: 1 piece @120V or 2 pieces @ 230V
Included Accessories:
- 2x Adjustable feet with 108mm omega clamp receivers
- 2x 108mm Omega clamps
- 1x IP65 Locking power cable
Optional Accessories:
- VFB1 (Floor Base for vertical stand)
- VFB1-VBA (Adapter to adapt Vintage Bar to VFB1 Floor Base. One adapter is required per floor base)
- 180mm Omega Bracket
Approvals / Protection Rating:
- cETLus (Control # 5028947)
- CE Certified
- FCC
- IP20 (Indoor Only)
Specifications are subject to change without notice.
