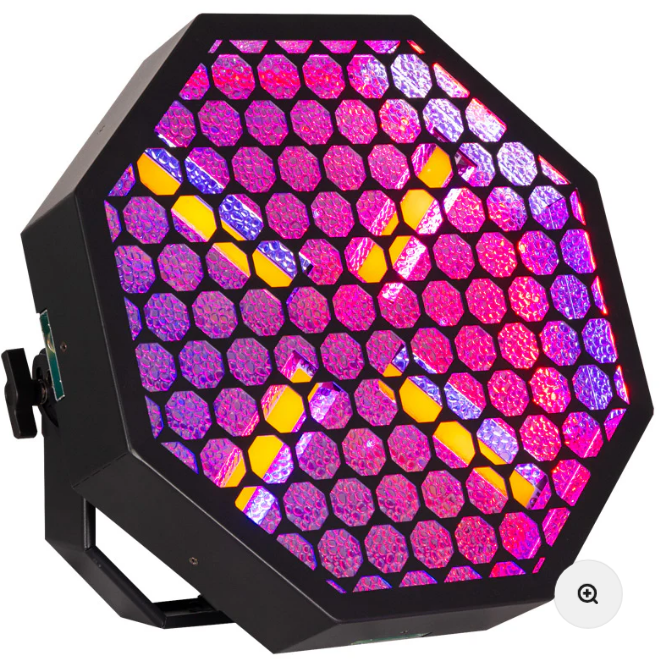

VIN004
Specifications
Features:
4 Foreground Amber LEDs
64 Background RGB LEDs
All LED's are Individually Controllable via DMX
Built-In Foreground LED Programs
Built-In Background LED Programs
Variable White Color Temperature Control (2,700K ~ 10,000K) (RGB LEDs)
User Selectable LED Refresh Rates (900Hz ~ 25K)
6 User Selectable Dim Modes
4 User Selectable Dim Curves
Electronic Strobe (0.1Hz ~ 20Hz)
Electronic Dimming
Source:
(4) 60W, 2000K, Amber Foreground LEDs
(64) 3W RGB Background LEDs
50,000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
Amber: 2000K (+/- 50K)
RGB: 2,700K ~ 10,000K White Color Temperature Range
Output: 220 Lux, 7000 to 8000 Lumens
140° Beam Angle
150° Field Angle
Physical:
IP20, Metal Housing
Safety Eyelet
Digital Display
Coffin Lock System to Interlock up to 8 Vintage X units
Adjustable Hanging Bracket
Omega Clamp Receivers (Omega Clamp Sold Separately
Control:
DMX512
Aria X2 Wireless Management / DMX System
Bluetooth
RDM and RDM Net Compatible
(10) DMX Channel Modes (10, 16, 25, 42, 47, 196, 203, 210, 214, and 218 Channel modes)
On-board Manual Control Mode
Primary / Secondary Mode
Connections:
5-pin XLR DMX In/Out Sockets
IP65 Locking Power In & Thru Sockets
Dimensions & Weight:
Length: 15.7" (398mm) Width: 15.7" (398mm) Height: 7.6" (194mm)
Weight: 18 lbs. (8.2 kg)
Power:
AC100-240V/50Hz-60Hz Input
200W Power Consumption
Link 2 pieces @120VAC or 4 pieces @ 230VAC
Thermal:
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications & IP Rating:
CE
cETLus (Control # 5027824)
FCC
IP20
Included Accessories:
(1) IP65 Locking Power Cable
Optional Accessories:
Omega Clamp (107mm)
Specifications and documentation subject to change without notice.
