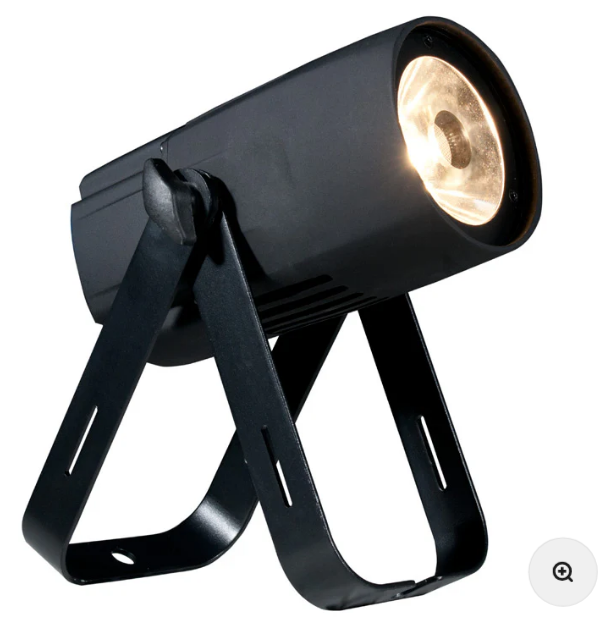

SAB605

Optical
• Light Source: 15-Watt Warm White LED
• LED Life Expectancy: 10,000 Hrs
• Beam Angle: 4-degrees
• Includes 2 interchangeable frost filter lens (10-degree 45-degree)
• Refresh Rate: 3.6KHz

Technical Features
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%
• Flicker Free
• Includes a scissor yoke to be hung or set on the ground

Connections
• Power Input: locking connection
• Power Pass through: locking connection
• Control: 3 Pin DMX In/Out pigtails
• With Wired Digital Communication Network

Control
• 2 DMX Channel Modes: 1 or 2

• RDM (Remote Device Management)

Electrical
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 15W, 0.13 Amps
• Power draw 220V 50Hz: 15W, 0.07 Amps

Physical
• Dimensions (LxWxH): 3.5” x 6.75” x 3.5” / 88 x 170 x 87mm
• Weight: 2.6 lbs / 1.2 kg.
• Metal Black Housing

Certifications
• ETL Approved, UL, CE
• IP 20: Dry area, No liquids

What’s Included
• Manual
• Locking power cord
• 2 frost filter lens (10-degree 45-degree)
• O-ring for frost filter lens

Optional Accessories
• PLC 3,PLC 6, PLC 10 (powerCON passthrough cables)
