RDM800

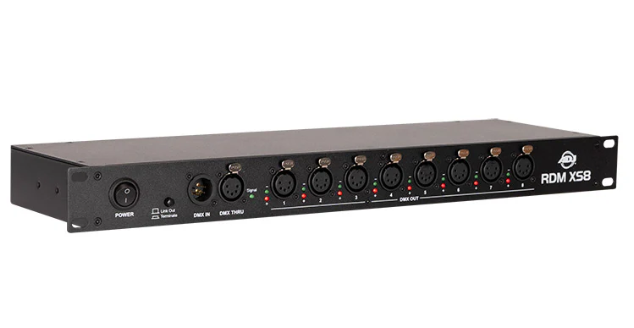

The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter. With one (1) 5-pin input, one (1) 5-pin thru and eight (8) 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient.
Description
Specifications
Protocols:
- DMX512 (Digital Multiplex)
- RDM (Remote Device Management)
Physical:
- 19" Rack Mount (1-space)
- 1x Indoor 5-pin XLR Input
- 1x Indoor 5-pin XLR Thru
- 8x Indoor 5-pin XLR Outputs
- Link Out Termination Switch
- DMX / RDM Protocol Switch
Dimensions amp; Weight:
- Length: 6" (152.4mm)
- Width: 19" (482mm)
- Height: 1.73" (44mm)
- Weight: 4.87lbs. (2.21kg)
Power:
- AC Input: 100-240V 50/60Hz
- Power Consumption: 3.1W @ 120V and 3.3W @ 230V
- Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
Thermal:
- Ambient Operational Temperature: 32°F to 113°F (0°C to 45°C)
- Humidity: lt;75%
- Storage Temperature: 77°F (25°C)
Certifications amp; IP Rating:
- cETLus (Control # 5014475)
- CE
- CB
- UKCA
- FCC (Pending)
- IP20
Specifications subject to change without notice.
