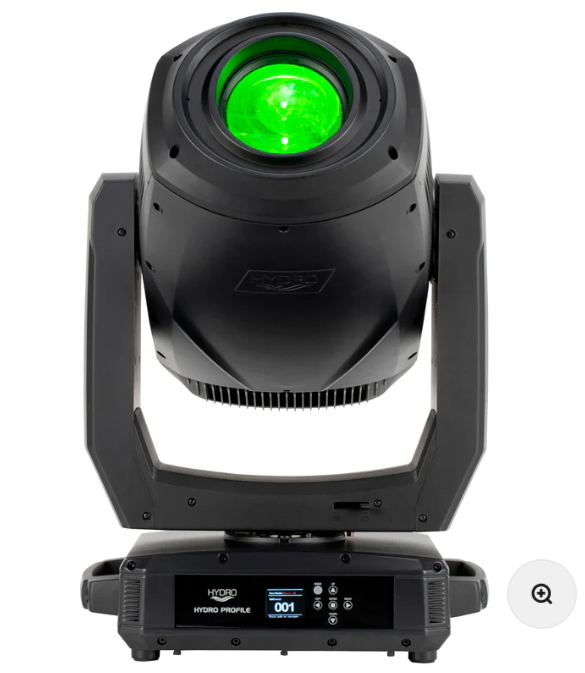

HYD580
Combining an immense 660-Watt LED engine, an impressive 25,000+ Lumens, and expansive feature set, ADJ’s IP65-rated Hydro Profile is a professional lighting powerhouse. A 4-blade rotatable framing system, alongside motorized zoom (6 ~ 45 degrees), motorized focus and iris, together with 2 frost filters, facilitate precise manipulation of the output. A CMY color mixing system, combined with a CTO flag and 7 slot replaceable color wheel, allow for exceptional versatility and creative freedom. Meanwhile, 2 GOBO wheels, 2 rotating prisms, and an animation wheel allow for the creation of an almost unlimited variety of aerial effects and surface pattern projections.
Description
Specifications
Light Source:
• 660W Cool White LED Engine (50,000 hr.)
• 25,000+ Lumens
• CRI: 89.9 (Out of the fixture)
Features:
• Wifly EXR (Wireless DMX)
• Motorized Focus
• 2 Frost Filters
• Beam Angle: 6°~ 45°
• Field Angle: 6.3°~ 44.3°
• 4 Rotating Framing Shutters, +/-60°, plus shape rotation
• Iris
• Animation Wheel
• 2 Prism FX: Rotating 6-facet Linear rotating 4-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• 2 cooling fans
Color:
• CMY color mixing system
• Variable CTO flag
• Color wheel with 7 dichroic colors + white (includes CTB and High CRI filters)
• Colors on wheel are removable and replaceable
Gobo Wheels:
• (1) Rotating Gobo wheel with 7 Gobos
• (1) Static Gobo wheel with 8 Gobos
• All Gobo’s are replaceable
• Gobo Shake Effect on both wheels
• Aluminum Gobo size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
• Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)
Prism Wheel:
• Prism Wheel 1: Rotatable 6-facet Linear
• Prism Wheel 2: Rotatable 4-facet Circular
• Both Prisms are indexable
Frost Filters:
• Frost 1: Heavy frost for wash effect
• Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX
Control:
• 3 DMX Channel Modes: 36/50/57
• Wifly EXR (Wireless DMX)
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• 0-100% smooth dimming
• Various strobe speeds
• With Wired Digital Communication Network
• RDM (Remote Device Management)
Pan/Tilt:
• Pan: 540 degrees
• Tilt: 270 degrees
• Pan Tilt Locks
Connections:
• DMX Connections: 5-pin XLR In/Out
• Power Connections: IP65 PowerLock Input
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 1088W
• Min/Max Ambient Temperature: -20ºC ~ 45ºC
Dimensions Weight:
• Dimensions (LxWxH): 12.5" x 17.0" x 28.3" (319x433x720mm)
• Weight: 84.9.lbs (38.5kg)
What’s Included:
• Two Omega Brackets
• 1.83M locking power cable
Approvals / Rating:
• ETL Approved / CE Certified
• IP65 with Marine Coated Exterior and conformal coated PCBs
Specifications subject to change without notice
