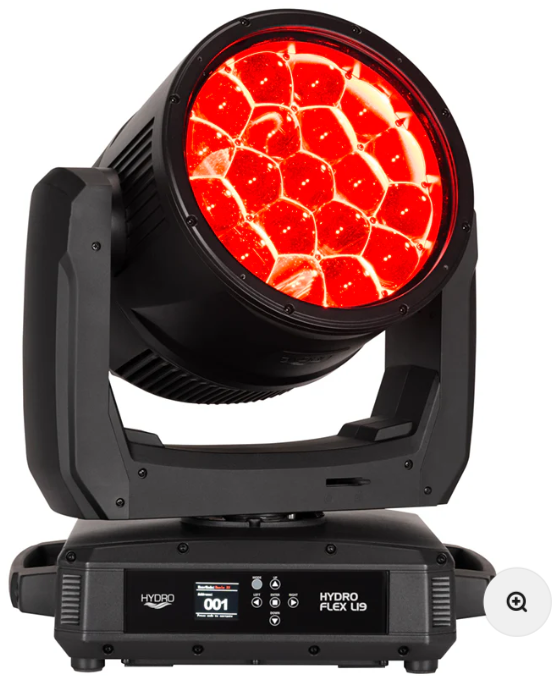

HYD346

• 19 x 60-Watt RGBL LEDs (50,000 hr.)

• CRI: 84.2

• TM30 Rf: 84.7

• TM30 Rg: 99.8

• Color Temperature: 2700K ~ 10,000K

• 54,400 lux / 4.3° beam @ 16’ (5m)

• 2,090 lux / 28.3° beam @ 16’ (5m)

• Lumens: 17,000 (Zoomed Out, Full On)

Features:

• Moving Light Pixel Wash

• Individual Pixel Control

• Built-In Pixel Effect Programs

• Aria X2 Wireless Management System

• Electronic Strobe / Dimmer

• Pan/Tilt: 540/630 x 243

• Motorized Zoom

• Beam Angle: 5° ~ 38°

• Field Angle: 8° ~ 56°

• Color Calibrated Pixels so units match from batch to batch

• Virtual CMY DMX Control Modes

• Virtual Foreground and Background Color Wheel Control

• Selectable LED Refresh Rates (900 Hz~25K Hz)

• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)

• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve

• 0-100% smooth dimming

• Fan Cooled

Colors:

• 19x RGBL LEDs (Red, Green, Blue and Lime)

• Virtual CMY DMX Control Modes

• Virtual Foreground and Background Color Wheel Control

• Built-In Color Macros

• 2,700K ~ 10,000K Linear White Color Temperature Control

• Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K

Control:

• 6 DMX Modes (22, 31, 40, 104, Standard CMY 31, Extended CMY 34)

• Color LCD display with 6-button function menu

• Control: DMX512, ArtNet, sACN, KlingNet and Aria X2 Wireless Management System

• Built-In Effect Pixel Programs with Speed and Fade Control

• RDM (Remote Device Management) compliant

• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 540/630 degrees

• Tilt: 243 degrees

• 16-Bit Fine Pan Tilt

• Pan Tilt Locks

Connections:

• DMX Connections: IP65-rated Locking In/Out XLR Sockets

• IP65-rated Locking In/Out RJ45 Network Sockets

• Power Connections: IP65-rated Locking In/Out Power Sockets

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz

• Max power consumption: 1400W (11.85Amps) @ 120V. 1350W (6.38Amps) @ 220V.

Dimensions Weight:

• Dimensions (LxWxH): 12.5”L x 17.04”W x 20.36”H (318x433x517mm)

• Weight: 60.8lbs (27.6kg)

What’s Included:

• 180mm Omega Brackets (2x)

• 1x 1.83M, IP65-rated locking power cable

• Safety Cable

Approvals / Rating:

cETLus Pending

CE Certified

IP65

Specifications subject to change without notice
