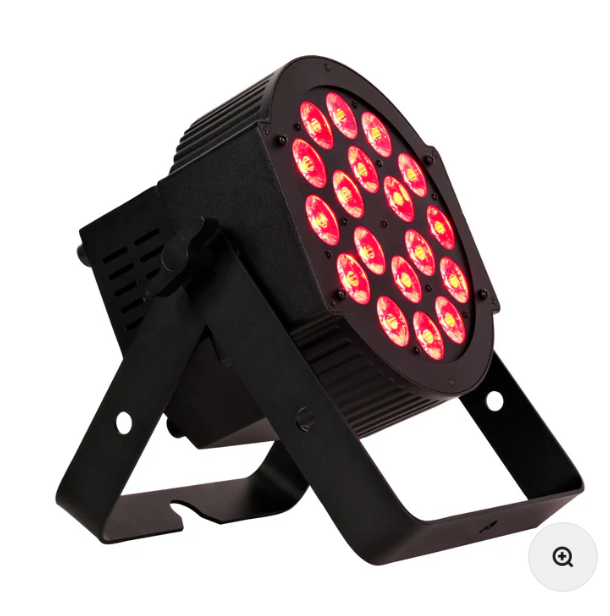

HEX686

Features:

• 18x 12-Watt Hex LEDs

• 63 built-iin Color Macros

• Locking power in and out connections

• Heavy duty metal construction with Gel Frame included

• ETL Approved

• With Wired Digital Communication Network

Optical:

• Light Source: 18 x 12-Watt Hex (RGBAW + UV) LEDs

• LED Life Expectancy: 50,000 Hrs

• Refresh Rate: 3.6KHz

• 25-degree beam angle

Technical Features:

• 63 Built In Color Macros

• 5 Operational Modes: Manual Color; Color Fade; Auto Program; Sound Active, and DMX modes.

• 4-button Digital Display for easy navigation

• Electronic Dimming 0 – 100%

• Flicker Free

• Gel Frame Included

• Includes a scissor yoke to be hung, or set on the ground

Connections:

• Power Input: Locking Power IN socket

• Power Pass through: Locking Power OUT socket (Daisy chain up to 7 units @120V, 16 units @ 230V)

• Control: 3-pin and 5pin In/Out DMX

Control:

• 4 DMX Channel Modes: 6, 7, 8 and 12

• Compatible with Dotz Par RF (Sold Separately)

• On Board control

• With Wired Digital Communication Network

• DMX, RDM (Remote Device Management)

Electrical:

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

Physical:

• Dimensions (LxWxH): 11.96” x 6.88” x 13” / 304 x 174.8 x 330.4mm

• Weight: 12.9 lbs / 5.9 kg.

• Metal Black Housing

Certifications:

• IP 30: Dry area, No liquids

• cETLus Approved (Control #4010765)

Whats Included:

• (1) 1 Meter, Locking Power to Edison Cable

• (1) Gel Frame

• Owner’s Manual

Optional Accessories:

• Dotz Par RF (Remote Control)
