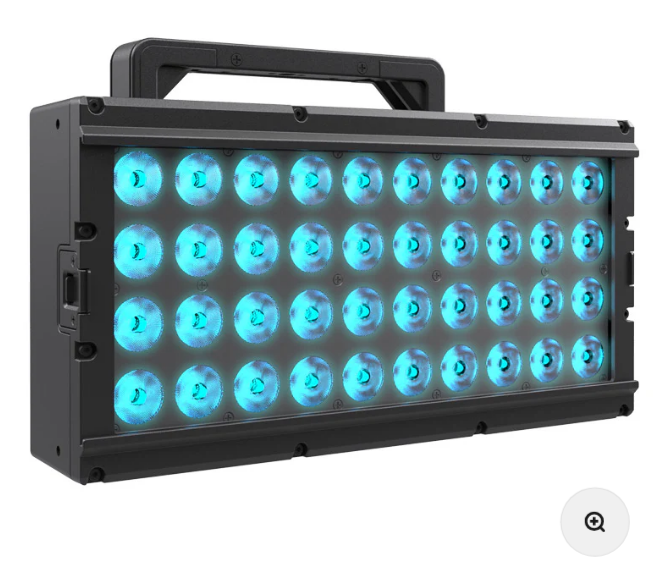

HEX444
Specifications
• LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
• Beam Angle: X = 28.61°, Y = 23.72°
• Field Angle: X = 50.82°, Y = 44.95°
• Lumens: 19,590
Features:
• IP65 rated – protects from dust, sand, moister, water
• Aria X2 Management System
• All metal construction with black housing
• Includes heavy duty bracket
• Flicker free for film and broadcast
• Linear variable white temperature control
Construction:
• Display: OLED display with function buttons
• All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
Control:
• 24 DMX control modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5 G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G 132Ch 10G modes
• 4 Control Groups: 1 / 2 / 5 10 Groups
• 0-100% Dimming + smooth 16-bit Dimming
• 5 Dimming Curve Modes
• Control Mode: DMX512, RDM (Remote Device Management)
• LED Refresh Rate: Multiple settings
• With Wired Digital Communication Network
Connections:
• Data: IP65 Locking 5-pin DMX In/Out
• Power: IP65 Locking Power In/Out
Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 513W @120V; 492W @220V
• Max Power Link: 1pcs @120V; 4pcs @230V
• Fuse Protected: T4A/250V Glass Fuse (5*20MM)
Dimensions / Weight:
• Length: 16.42" (417mm)
• Width: 11.7" (296.8mm)
• Height: 8.35” (212mm)
• Weight: 24.58 (11.15kg)
What’s Included:
• 1 x IP65 Locking Power Cable
• 1 x Frost Filter
• 1 x Safety Cable
Optional Accessories:
• 180mm Omega Bracket
• JPFXBLKF (Sku: JPF001 - Black Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)
• JPFX1X60LF (Sku: JPF014 - 1x60° Linear Effect Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)
• JPFX60X1LF (Sku: JPF027 - 60X1° Linear Effect Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)
Approvals and Ratings:
• CE
• cETLus (Pending)
• IP65
Specifications are subject to change without notice.
