AX2178

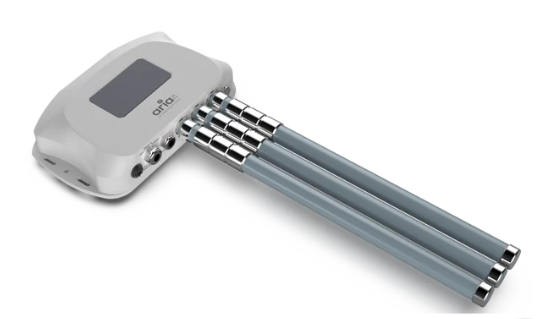

The Aria X2 IPH Bridge is a rugged, IP67-rated wireless DMX transceiver designed for reliable performance in demanding environments. Supporting a single DMX universe, it operates on the 2.4 GHz band with built-in WiFi and Bluetooth 5.2 for flexible connectivity. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience, whether on show site or in the shop. In addition to transmitting the Aria X2 serial protocol, Aria X2 Bridge is also compatible with ADJ WiFLY, Elation eFly, Magmatic MagFly and Acclaim Aria.
Description
Specifications
Features:
Single DMX Universe
Sub-GHz 2.4 GHz Bands and Bluetooth
Bluetooth 4.2
Configuration via App or Front panel
Wireless to DMX or DMX to Wireless
IP67 Housing
Supported Protocols:
DMX512
Proprietary 802.15.4
Aria X2 Mesh Protocol
Bluetooth 4.2 (BLE)
Aria X2 Serial Protocol (This is our proprietary serial protocol for communicating with a variety of fixtures.)
RF Characteristics:
Frequency range
Bluetooth: 2402-2480 MHz
Zigbee: 2405-2480 MHz
SM220: 2405-2475 MHz
Radio module: Aria X2
Interference mitigation
CSMA
Adaptive frequency hopping (on the roadmap)
OTA updates
Power:
Power Input: AC100-240V 50/60Hz
Power Consumption: 2.2W (19mA) @ 120V/60Hz, 2.2W (10mA) @ 230V/50Hz
Power Fuse: T1.25A/250V. (5 x 20mm)
Physical:
IP67 Enclosure
Front panel digital screen
M12 Threads
Max ambient operating temp range: -4°F to 113°F (-20°C to 45°C)
Max operating humidity: <75%
Storage temperature: 77°F (25°C)
Dimensions and Weight:
Length: 9.53" (242mm)
Width: 6.32" (160.60mm)
Height: 3.25" (82.30mm)
3.7lbs (1.66kgs.)
Specifications subject to change without notice.
