AX2165

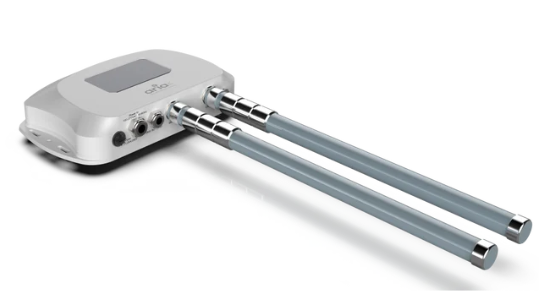

The Aria X2 IPH is a versatile single-universe DMX solution featuring Sub-GHz, 2.4 GHz WiFi, and Bluetooth connectivity. Easily configure via our Aria X2 intuitive mobile app or onboard front panel. Seamlessly operates as either Wireless-to-DMX or DMX-to-Wireless transceiver.
Description
Specifications
Features:
Single DMX Universe
Sub GHz, 2.4 GHz and Bluetooth
Configuration via App (Coming Soon) or Front panel
Wireless to DMX or DMX to Wireless
Supported Protocols:
DMX (RDM is planned)
Proprietary 802.15.4
Aria X2 Mesh Protocol
Bluetooth 4.2 (BLE)
Aria X2 Serial Protocol (This is our proprietary serial protocol for communicating with a variety of fixtures).
RF Characteristics:
Frequency range
Bluetooth: 2402-2480 MHz
Zigbee: 2405-2480 MHz
Sub-GHz US: 906-924 MHz
Radio module: Aria X2
Interference mitigation
CSMA
Adaptive frequency hopping (on the roadmap)
OTA updates
Data:
1x Hardwire DMX In / Thru
Power:
Hardwire, AC100-277V 50/60Hz
Power Consumption: 1.7W (17mA) @ AC100V 60Hz., 1.7W (14mA) @ AC120V 60Hz., 2.1W (9mA) @ AC230V 50Hz.
Power Fuse: T1.25A/250V. (5 x 20mm)
Physical:
IP67 Aluminum / Metal enclosure
Front panel digital screen and rotary knob
M12 Thread for clamp mount
Kensington slot
Max ambient operating temp: 113°F (45°C)
Max operating humidity: <75%
Storage temperature: 77°F (25°C)
Dimensions and Weight:
Length: 6.3" (159.9mm)
Width: 9.2" (233.7mm)
Height: 1.81" (46mm)
3.6lbs (1.63kgs.)
Specifications subject to change without notice.
