TX-H2X-HDBT

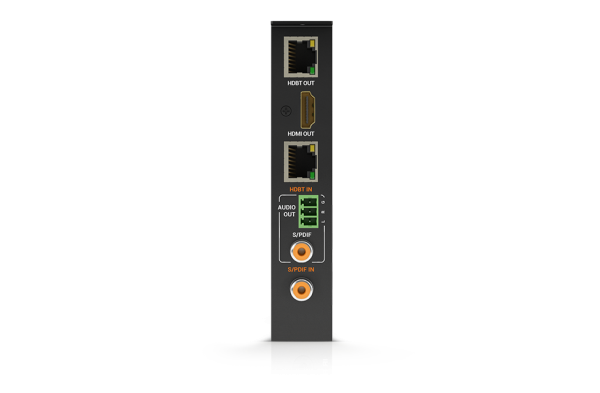

H2XC Card: 4K HDBaseT In, 4K HDBaseT Out, Mirrored HDMI Out
Description
De-centralize sources connected to the H2X matrix platform with this HDBaseT input & output card. Accepting 4K UHD transmissions from 70m/230ft, this modular card allows source devices to be kept in-suit while making them part of the main distribution system.
Additional Features
AUDIO & VIDEO
Inputs
1x S/PDIF In Coaxial Digital
1x HDBaseT™ 8-pin RJ-45 female
Outputs
1x HDBaseT™ 8-pin RJ-45 female
1x HDMI In19-pin type A
1x S/PDIF Out Coaxial Digital
1x Audio Out 3pin Phoenix Connector
Video Encoding
HDBaseT™ Class A
Encoding Data Rate
9.2Gbps
Audio Formats
2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Video Resolution (Max)
1920x1080p @60Hz 16bit
3840x2160p @30Hz 8bit 4:4:4
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2150p @60Hz 8bit 4:4:4
Maximum Pixel Clock
HDMI: 600mHz | HDBaseT™: 297MHz
COMMUNICATION & CONTROL
HDMI
HDCP 2.2 | DVI-D supported with adapter (not included)
HDBaseT
HDMI | HDCP 2.2 | 1-way PoH to Receiver | IR RX to Receiver
IR
1x IR RX 3.5mm (1/8in) TRS Stereo | To Receiver over HDBaseT™
RS-232
Matrix Control | Bidirectional over HDBaseT™ | Firmware Updates
Ethernet
From Matrix – No Connection on card | Bidirectional over HDBaseT™
Audio Return Channel
(ARC)
Supported
POWER
Power Supply
Internal to Matrix
Max Power Consumption
Matrix Dependent
- HDBaseT Input – enables the direct connection of a remote source to the matrix via an HDBaseT Transmitter only at the source location, rather than an HDBaseT extender set previously required to distribute a remote signal over distance to a matrix. The matrix will then route the remote source signal as it does with any locally connected source
- HDBaseT Output – transmitting Class A HDBaseT which includes video, audio, control and power up to 70m/230ft of 4K and 100m/328ft of 1080p
- HDMI Output – mirrored to HDBaseT to allow additional connection of a local display device, AVR or to extend with a hybrid active optical HDMI cable (HAOC)
- Stereo Audio Output – offering stereo audio breakout of a zone with a 3-pin phoenix connector for analog audio
- S/PDIF output supporting 5.1 audio content de-embedded from sources or ARC from connected zones
- S/PDIF Audio Input – another way to inject digital audio to take advantage of the H2X platform’s powerful audio matrix and DSP.
- IR RX – allows control signals to be sent to the sink device
