XTREEM-WALL
What is the XTREEM-WALL?

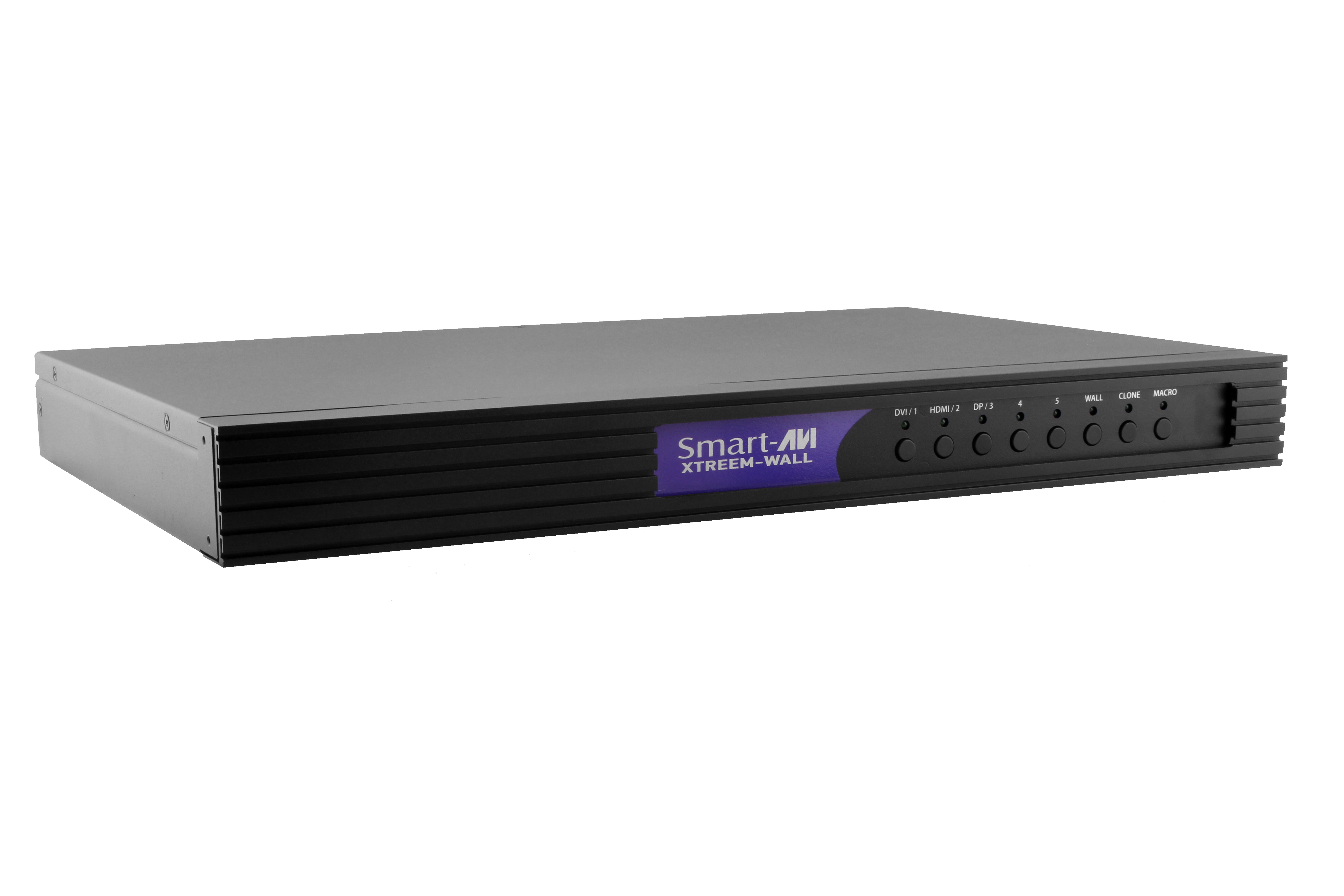

The XTREEM-WALL is a multi-format video wall controller with DisplayPort, DVI-I, and HDMI connectors. It is capable of input video resolutions up to 4K (3840×2160 @ 30Hz) and output resolutions up to 1080p (1920×1080 @ 60Hz) Full HD.
One of SmartAVI’s easiest and most effective solutions for building creatively configured video walls, the XTREEM-WALL is highly compatible with the most popular displays on the market and features a variety of stunning video wall modes.
How to use XTREEM-WALL
Using XTREEM-WALL is extremely simple and flexible enough to fit your unique control style. To take command of the controller, you can use:
- Front Panel Buttons for switching video sources, display modes, adjusting picture, and configuring your video wall.
- IR Remote Control with our packaged RMT-XW remote and IR-EYE receiver.
- Network Web Control Interface for connecting to the video wall and controlling it over the internet.
XTREEM-WALL users may also control the unit with our free Android app, great for fine-tuning abstract designs and creatively configured wall displays.
Applications for XTREEM-WALL
The XTREEM-WALL excels in a wide array of real-world applications. Perfect for the majority of displays on the market, it is highly compatible with popular HDMI-outfitted HDTVs and monitors. The XTREEM-WALL works extremely well in retail spaces like stores and malls, entertainment venues such as movie theaters and concert halls, airports, hospitals, schools, office buildings, and hotel lobbies.
FEATURES:
- INPUT: (1) DP, (1) DVI-I, (1) HDMI 4K Input
- OUTPUT: (4) 1080p HDMI, (1) HDMI Local Loop
- Input up to 4K (3840×2160 @ 30Hz)
- Output up to 1080p (1920×1080 @ 60Hz)
- Creative configuration modes, including:
Full Video Wall | PIP | POP | Flip - Supports VGA & Y/Pb/Pr when paired with a DVI-I adaptor
- Includes IR remote control & receiver.
- Control over web console or Android apps
- Plug-and-play for immediate use.
INCLUDES:
- XTRW: 4K IN-HD OUT DP/DVI-I/HDMI Video Wall Controller
- IR-EYE: IR signal receiver
- RMT-XW: IR remote control
- Power Supply
| VIDEO & AUDIO | |
|---|---|
| Format | DP, DVI-I, HDMI |
| Video Input | (1) DP; (1) DVI-I; (1) HDMI *VGA & Y/Pb/Pr support w/ DVI-I adaptor |
| Video Output | (4) HDMI (1) HDMI local loop back |
| Input Resolution | Up to 4K (3840×2160 @ 30Hz) |
| Output Resolution | Up to 1080p (1920×1080 @ 60Hz) |
| Audio Input/Output | HDMI Digital Audio |
| Compliance | HDCP Compliant |
| CONTROL | |
| Front | Front-panel tactile switch buttons |
| IR | RMT-XW infrared remote control with IR-EYE receiver |
| Network | Web control interface |
| OTHER | |
| Power | 100-240 VAC, PS12VDC3.33A |
| Max. Consumption | 20 W. |
| Dimensions | 17.0” W x 1.9” H x 10.8” D |
| Weight | 6.95 lbs |
| Storage Temp. | -4 to 149 °F (-20 to 65 °C ) |
| Operating Temp. | 32 to 122°F (0 to 50 °C ) |
| Humidity | Up to 90% (No condensation) |
