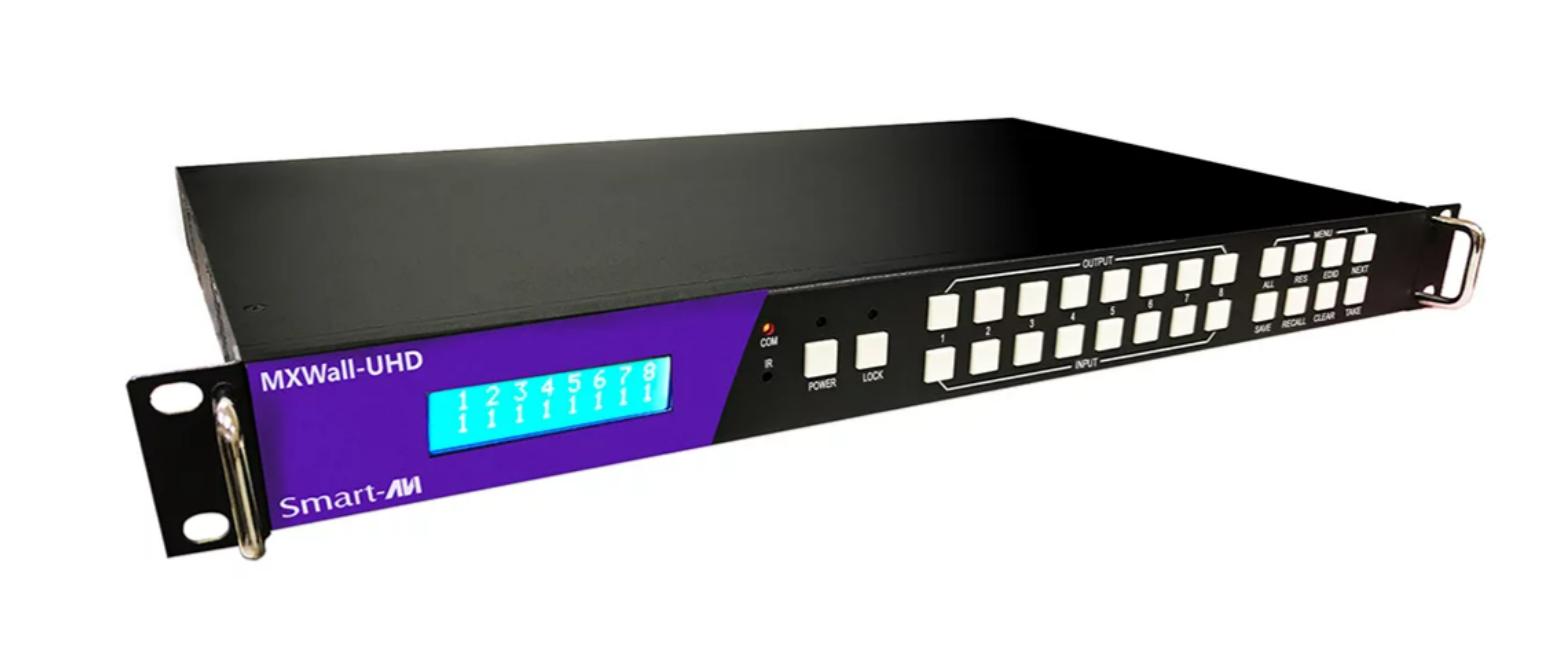

MXWall-UHD
The MXWall UHD is an 8×8 Ultra HD (4k/60Hz) video wall with seamless Matrix features, RS-232 command capabilities and a Windows GUI.
Description
- Supports UHD 4K/60Hz, 4K/30Hz and 1080p/60Hz on both inputs and outputs
- HDMI 2.0 input
- Seamless switching
- Control via IP, RS-232 and the front panel
- Windows GUI allows unlimited customization
- Can be configured as 2×4, 4×2, 1×8 and more
- Integrated scaler can convert any resolution to UHD
- Complete hardware solution
- Plug-and-play ready
- Unlimited Layouts
| VIDEO | |
|---|---|
| Amplifier Bandwidth | 18 Gbps |
| Input Video Signal | Video (TMDS) 0.4~1.0Vpp |
| Input DDC Signal | 5 volts |
| Compliances | HDMI 2.0, HDCP 2.2 |
| Input Resolutions | 3840 x 2160 @ 24 Hz / 25 Hz / 30 Hz / 50 Hz / 60 Hz |
| Output Resolutions | 3840 x 2160 @ 24 Hz / 25 Hz / 30 Hz / 50 Hz / 60 Hz; 1080p @ 60 Hz |
| Video Type | HDMI |
| Input Interface | (8) HDMI |
| Output Interface | (8) HDMI |
| IR CONTROL | |
| Input Interface | (8) 3.5mm (Female) |
| Output Interface | (8) 3.5mm (Female) |
| AUDIO | |
| Format | Stereo |
| Input Interface | (8) 3.5mm (Female) |
| Output Interface | (8) 3.5mm (Female) |
| OTHER | |
| Working Temperature | 0°C~+40°C |
| Storage Humidity | 10%~50% |
| Weight | 11 lbs |
| Dimensions | 17” (W) x 3.5” (H) x 15” (D) |
| Power Supply | 50/60Hz, 110-240 VAC |
| Consumption | 100W |
| CONTROL | |
| Front Panel | Tacticle Switches |
| RS-232 | DB9 connector, Baud Rate 9600 |
| TCP/IP | RJ-45, UDP telnet |
