Item Code
RLY-6
Product
Description
Description
Eclipse HX specialty Interface Modules seamlessly connect Eclipse HX intercom systems to external communication, audio, and control systems—including generic 4-wire audio, 2-wire Partylines, two-way radios, telephone lines, and contact closures. Audio interface modules are supported by the MVX-16A Interface card, while the contact closure modules daisy-chain from the Eclipse frame’s CPU card. These auto-discovering interface modules mount within matrix or interface frames to simplify installation and ensure robust interoperability.

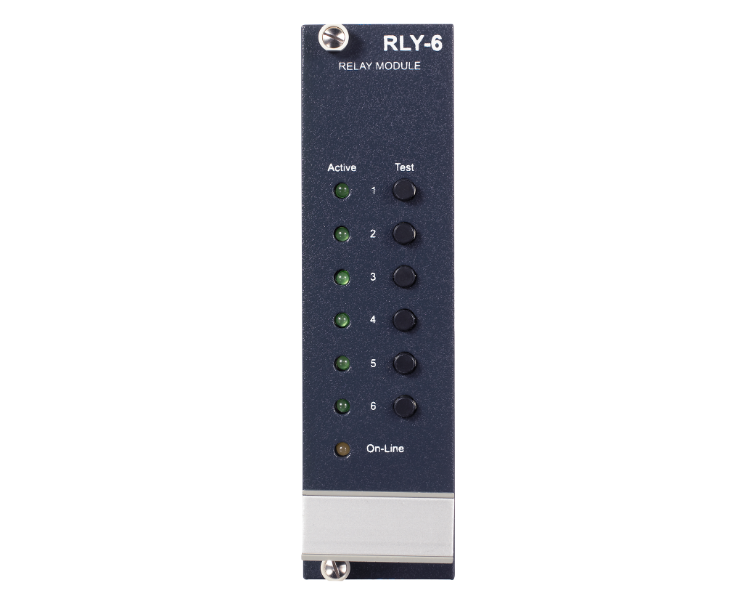

RLY-6
Provides six fully programmable SPDT relay outputs to handle dedicated external switching functions. The module connects via the frame’s CPU card, allowing for logic control without consuming standard audio I/O ports.
