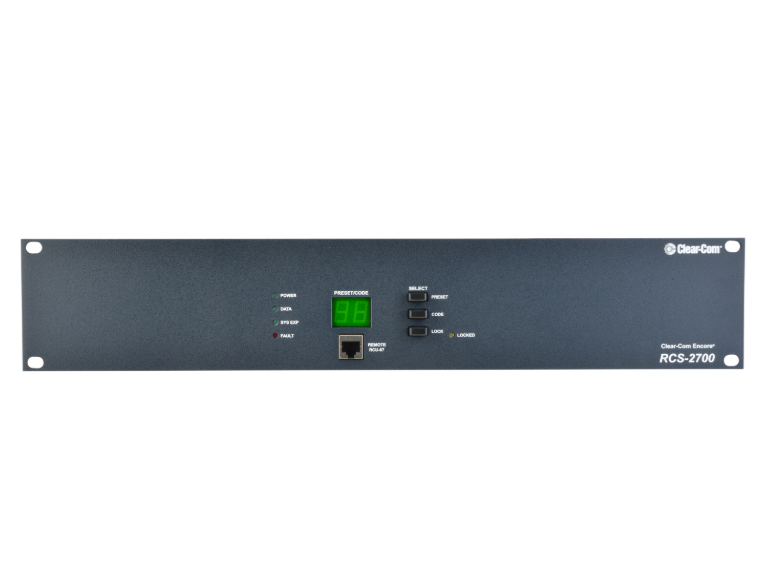

RCS-2700 (Last Time Buy)
The RSC-2700 is an 8-source by 24-destination assignment panel that offers remote switching of partyline assignments for medium to large-size systems. The sources are the channels from a main station or paryline interface from a matrix or similar system. The destinations are the channels from a beltpack or another interface.
Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.
Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.
Description
Technical
Details
- Expandable up to 15 sources x 72 destinations
- Stores 14 presets in non-volatile memory
- Multiple systems can be controlled from the same PC
- Latching relays keep current draw extremely low
- TW compatible
- Front panel security lockout
- Easy-to-wire Euro-terminal blocks for rear panel connections
- External contact closure input for remote preset selection
Item Code
RCS-2700
Technical
Specifications
Audio
Partyline Intercom: 20 - 20kHz (passive switching)Crosstalk
<-70dBFrequency Response
Port-Port: 20Hz - 20kHzPower Requirements
Input Voltage: 27-33V DC
Input Current (max): <= 80mA
Dimensions
3.5 x 19 x 10.75in (HxWxD)
(89 x 483 x 273mm)
Sizes
Single frame, 1x2, 2x1, 2x2, 1x3, 2x3RCS-WIN hardware requirements
Pentium I or better 16 MB RAM, 12 MB Hard Disk Space Monitor: 800 X 600 Minimum ResolutionRS-232 Data
Baud rate: 19.2 Kbps
Start Bits: 1 start bit
Stop Bits: 1 stop bit
Parity: no parity
