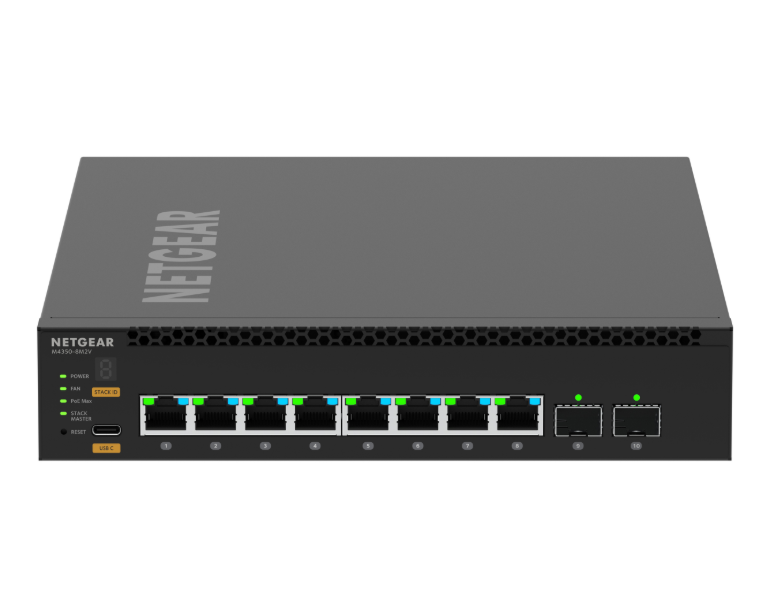

M4350-8M2V (MSM4310)
8x2.5G PoE++ up to 551W and 2x25G SFP28 Managed Switch
Description
Technical
Details
- 8 2.5G PoE++ ports with 2 25GBASE-X SFP28 uplinks.
- Comes with one APS254W power adapter providing 119W of base PoE budget.
- Half-width form factor enables one or two switches in a single rack space
- Up to three APS254W power adapters provide up to 551W PoE budget and/or N+1 redundancy
- The PoE budget can reach 551W, when the redundant PoE budget is 119W (1+1) or 322W (2+1).
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
- Layer 3 feature set includes static, policy-based, and dynamic routing.
- NETGEAR IGMP Plus ™ , NETGEAR AV OS, and Engage Controller speed up AV installations.
- SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
- Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.
- NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty.
- Lifetime Next Business Day Hardware Replacement.
Item Code
M4350-8M2V
Technical
Specifications
Primary Port Speed: 2.5G
Number of Ports: 10
- 2.5G PoE++ (8)
- 25G SFP28 (2)
Total PoE ++ Ports: 8
Total PoE ++ Budget: 119W Base, up to 551W
IGMP Support: Enhanced (NETGEAR IGMP PlusTM)
Jumbo Frame Support: Yes, up to 12kb
AVB Support: Yes, included
Acoustics: Quiet Mode 32.1dB @ 25ºC
Power Consumption
With max PoE: 683W/2324.93Btu/hr
Without PoE: 82W/27.95Btu/hr
Standby without any port connection: 61.2W/208.6Btu/hr
PSU Compatible Models: APS254W external power adapter (max. 3)
Dimensions
220 x 43.2 x 300mm
Weight
2.9kg (6.39lbs)
