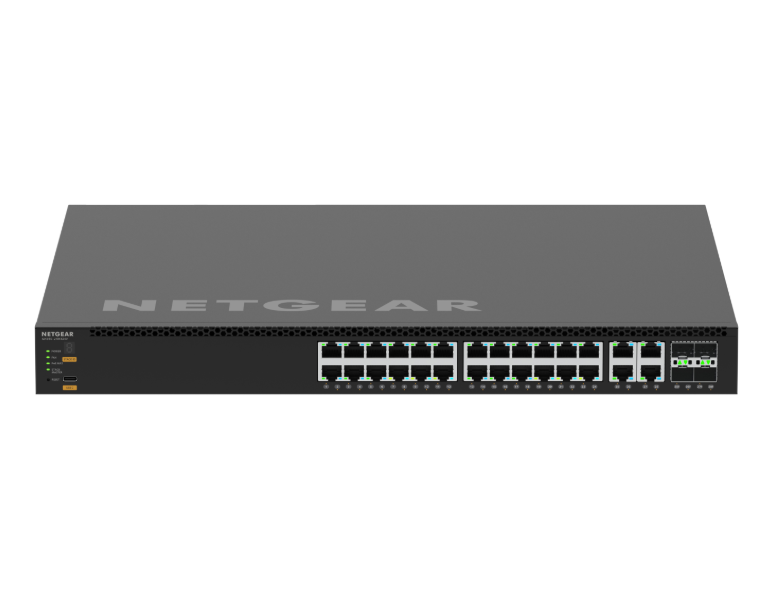

M4350-24M4X4V (MSM4332)
Multi-gig PoE++ and 4xSFP28 25G Managed Switch.
Description
Technical
Details
- 24 2.5G and 4 10G/Multi-gig PoE++ ports with 4 25GBASE-X SFP28 uplinks.
- 800W internal power supply providing 522W of PoE budget.
- 2 slots for modular power supplies (1+1 redundancy and/or EPS share).
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
- The PoE budget can reach 2,520W, the redundant PoE budget can reach 1,972W.
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
- Layer 3 feature set includes static, policy-based, and dynamic routing.
- NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
- SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
- Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
- Lifetime Next Business Day Hardware Replacement.
Item Code
M4350-8M2V
Technical
Specifications
Primary Port Speed: 2.5G
Number of Ports: 32
- 2.5G PoE++ (24)
- 10g/Multi-Gig PoE++ (4)
- 25G SFP28 (4)
Total PoE ++ Ports: 28
Total PoE ++ Budget: 552W Base, up to 2520W Budget
IGMP Support: Enhanced (NETGEAR IGMP PlusTM)
Jumbo Frame Support: Yes, up to 12kb
AVB Support: Yes, included
Acoustics: Quiet Mode 34.8dB @ 25ºC
Power Consumption
With max PoE: 2845W/9,702.59Btu/hr
Without PoE: 123.4W/420.95Btu/hr
Standby without any port connection: 53W/180.94Btu/hr
PSU Compatible Models:
APS600Wv3
APS1200Wv2
APS2000Wv2
Dimensions
440 x 43.2 x 400mm
Weight
7.38kg (16.26lbs)
