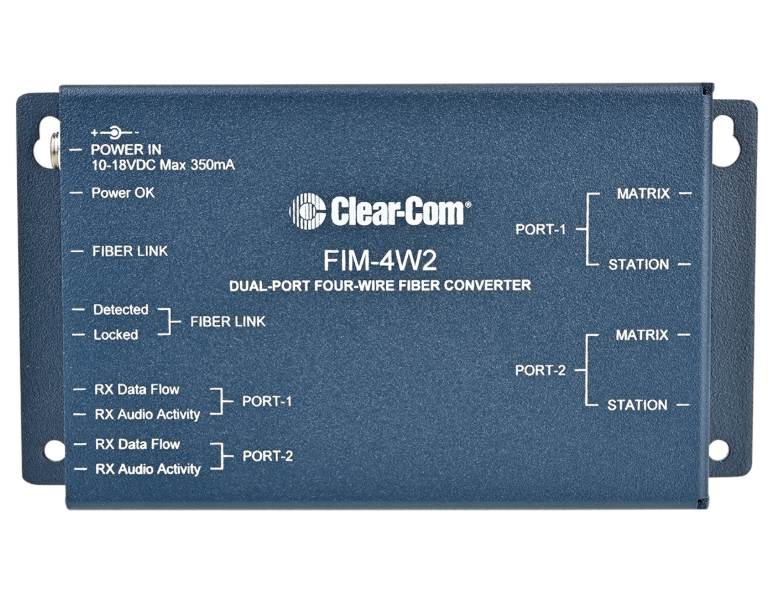

FIM-4W2
Details
- Compact 2-channel interface box
- Remotely locates one or two digital matrix panels or interface models over fiber
- 24-bit digital DEMUX
- 48kHz audio sampling rate
- Sends and receives RS-422 control data
- Flat frequency response up to 20kHz, S/N >80dB
- RJ45 connectors for direct connection with matrix panels, frames and interfaces
- Can be used to extend any line level 4-wire audio signal
- Can be used to extend any RS-422 signal
Item Code
FIM-4W2
Optional Accessories and Spare Parts:
453G008-2: Desktop PSU
SFP-SMFO-1G-LX: Single-mode LX Fiber SFP
SPF-MMFO-1G-SX: Multi-mode SX Fiber SFP
CCC-803051: Rack Mount Shelf
WIR-00046: Cable Adapter
WIR-00047: Cable Adapter
Technical
Specifications
Audio
Transmission Method: Digital, TDM, 48k samples/sec
Input Impedance: >20kΩ, balanced
Output Impedance: 60Ω, balanced
Maximum Input Level: +18dBu, balanced, <1% THD+N
Maximum Output Level: +18dBu balanced; 50-20kHz>10kΩ; <1% THD+N
Frequency Response: 50-20kHz, 0dBu +/-0.4dBu
Total Harmonic Distortion + Noise: <0.2%, across bandwidth, +8dBu <0.007%, 1kHz, max level
Signal to Noise Ratio (SNR): <-80dB, ITU-R 468 wtd; Ref. Max level +18dBu
Port Separation (Crosstalk): <-90dB, Ref. 0dBu, 1kHz. channel to channel
Fiber Data Link Speed: 1.2288Gbps
System Delay: <1ms
Frame-to-Panel Digital Data
Transmission Rate (RS-422, Balanced TTL Levels): 0 to 250 kBits/sec
Jitter: <250ns
Connectors
Connectors: (4) RJ45
Power Connector: 2.5mm jack, screwlock, center pin positive
Power Supply
Input Voltage Range: 10-18V DC
Power Consumption: @12V per end, all channels at full level; <5 watts
A/C Adapter: Supplied
Temperature
Operating: 32°F - +113°F (0°C - +45°C)
Storage: -22°F - 158°F (-30°C - +70°C)
Humidity: 20%– 90%, non-condensing at 40°C
Dimensions
3.4 x 1.2 x 6.3in (WxHxD)
(86.4 x 30.5 x 160.02mm)
Weight
0.6lbs (0.27kg)
