EQP-TCVR
Details
- Power and audio to transceivers
- Remote monitoring from the EQUIP base station
- 5 GHz license free radio band
- Single CAT5/6 cable to EQUIP Base
- Centrally powered from the EQUIP Base Station
- Site Survey Mode for transceiver placement
- 40 Wireless headsets per system
- Status LEDs
Item Code
EQP-TCVR: EQUIP 5 GHz Transceiver
EQUIP System Bundles
EQP-3UP-US: (3) User bundle w/ headsets: 2Ch, 5GHz, US
EQP-3UP-EU: (3) User bundle w/ headsets: 2Ch, 5Ghz, EU
EQP-3UP-AU: (3) User bundle w/ headsets: 2Ch, 5GHZ, AU
EQP-3UP-KR: (3) User bundle w/ headsets: 2Ch, 5GHZ, KR
EQP-3UP-JP: (3) User bundle w/ headsets: 2Ch, 5GHZ, JP
EQP-5UP-US: (5) User bundle w/ headsets: 2Ch, 5GHZ, US
EQP-5UP-EU: (5) User bundle w/ headsets: 2Ch, 5GHZ, EU
EQP-5UP-AU: (5) User bundle w/ headsets: 2Ch, 5GHZ, AU
EQP-5UP-KR: (5) User bundle w/ headsets: 2Ch, 5GHZ, KR
EQP-5UP-JP: (5) User bundle w/ headsets: 2Ch, 5GHZ, JP
Product
Description
Description

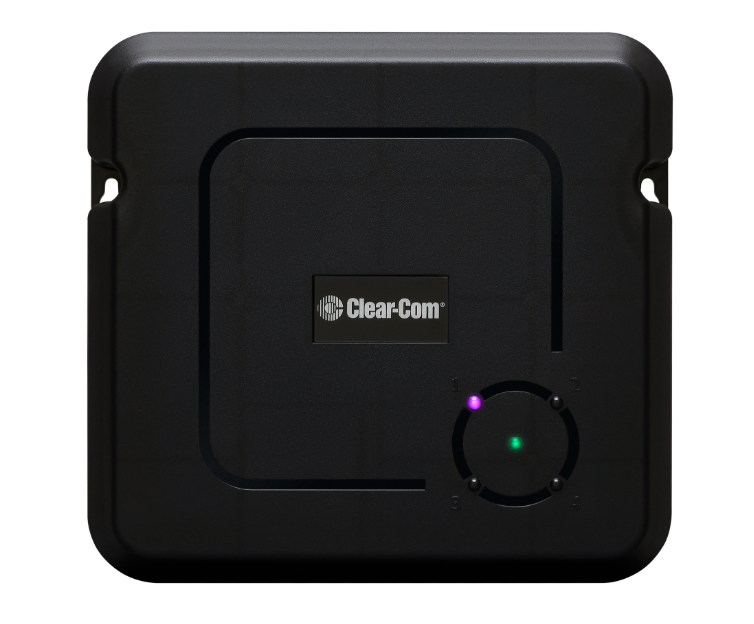

The EQUIP-TCVR is a digital remote transceiver for the EQUIP wireless intercom system, connecting to the EQUIP-WH all-in-one headsets to the EQUIP-BASE base station. Up to four of the rugged, wall mountable transceivers can be connected to a single base station to ensure maximum coverage range.
Operation
The EQUIP-TCVR is an omni-directional 5 GHz transceiver that provides connection for up to 40 wireless EQUIP headsets. Each transceiver is controlled and monitored by the EQUIP base station.
Durability
The EQUIP-TCVR is IP53 rated for wet weather or dusty conditions, making it ideal for outdoor environments.
