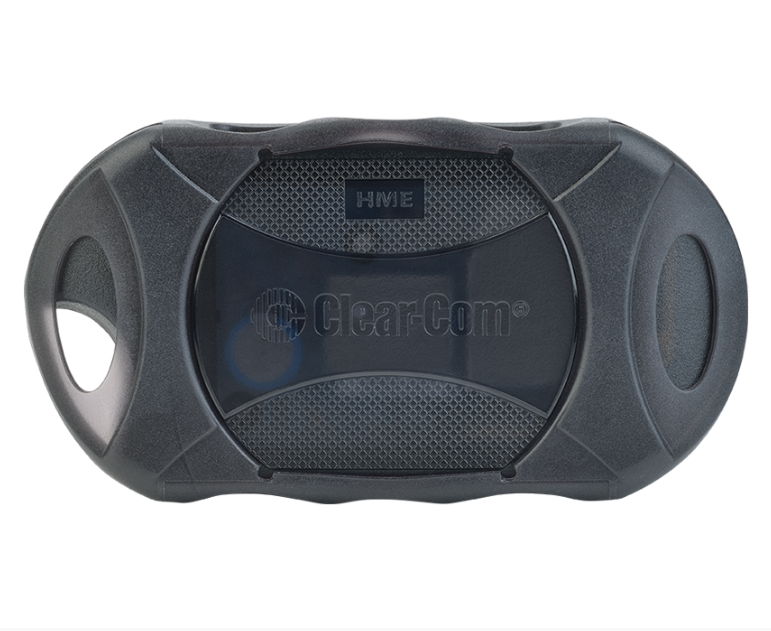

BP410
- Two-channel operation
- 2.4GHz license-free operation
- Up to 15 beltpacks and/or all-in-one handsets on a single system
- 7kHz wideband audio
- Single or dual-channel operation
- Up to 12 hours of battery life
- Light-weight, compact design, ergonomic design
- Rugged and reliable
Technical
Specifications
Audio
Channels: 2 audio channels
Frequency Range: 2400MHz – 2483.5MHz
Frequency Response: 200Hz – 7kHz
Antenna: Internal, horizontal/vertical diversity
Headset Connector: 4-pin, mini-DIN
Microphone: Electret
Headset Output: 160mW into 32Ω
System Distortion: <2%
Controls: Power, Volume-Up, Volume-Down, A, B, ISO
Indicators: Dual-color LED (red/green)
Battery Requirements: 3.6V lithium-ion
Battery Life: Up to 12 hours
Antenna
Internal, Horizontal/Vertical diversityTransmitter
Type: Frequency Hopping, Spread Spectrum (FHSS)
Transmit Power: 100mW burst
Modes: Momentary or Latch
Type: Gaussian filtered FSK, TDMA
Frequency Stability: 13 ppm
Harmonics/Spurious: Exceeds FCC and ETSI specifications
Receiver
Type: Frequency Hopping, Spread Spectrum (FHSS)
RF Sensitivity: <-90dBm w 10-3 BER
Frequency Stability: 13 ppm
Distortion: <2%
Environmental
32° to +122°F (0° to +50°C)Dimensions
2.25 x 4.5 x 1in (HxWxD)
(57.2 x 114.3 x 25.4mm)
