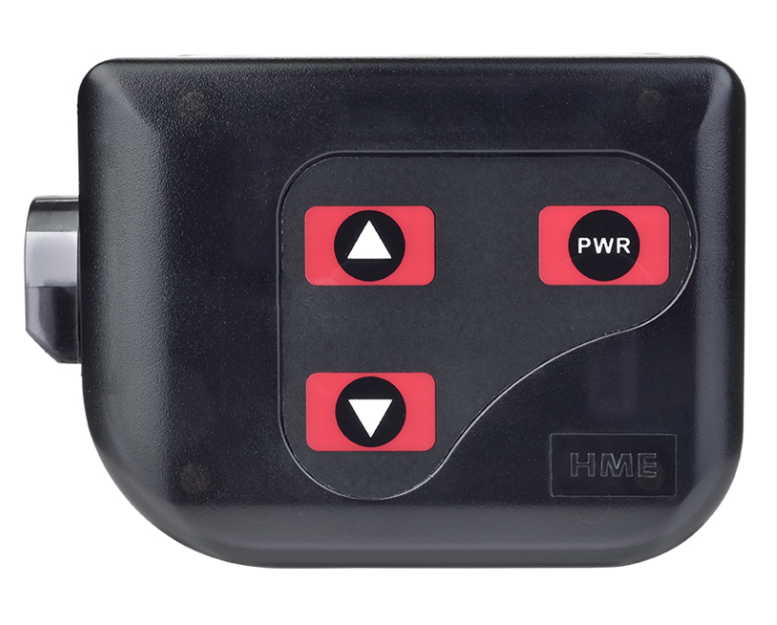

BP340 (Last Time Buy)
- 2.4GHz license-free operation
- Up to 4 full-duplex or 15 half-duplex beltpacks and/or all-in-one handsets per base station
- 7kHz wideband audio
- Single or dual-channel operation
- Light-weight, compact design, ergonomic design, weighing 7.4 oz
- Rugged and reliable
- Voice prompts
- Internal antenna
- Up to 20 hours of battery life
- Uses BAT41 Batteries and AC40 Battery Charger
Technical
Specifications
System
Frequency Range: All (2400 – 2483.5MHz), Low (2401.92 to 2439.936MHz) or High Band (2443.392 to 2481.408MHz)
Frequency Response: 200Hz to 7kHz
Security: 64-Bit Encryption
Temperature Range: -4 to131°F (-20 to 55°C)vtypical
Transmit/Receive: Frequency-Hopping, Spread Spectrum (FHSS)
Transmit Power: 100mw Burst
Modulation Type: Gaussian Filtered FSK, TDMA
Frequency Stability: 13ppm
Harmonics/Spurious: Exceeds FCC and ETSI Specifications Over Temperature
RF Sensitivity: <-90dBm w 10-3 BER
System Distortion: <2%
Dynamic Range: -90dBm to –20dBm
FCC Acceptance: Part 15
Beltpack
Antenna Type: Internal, Dual Diversity (beltpack)
Transmission Modes: Continuous (Latched) or Push-to-Talk (PTT)
Mic Input: Electret
Headset Output: 160mw into 32W
Controls (Default): Power-On/Off, Volume-Up/Down, IC-Talk, ISO-Relay
Indicators: Power/Transmit/Low Battery LED & Voice Prompts
Beltpack Headset Connector: Mini-DIN
Beltpack Carrying Pouch: Santoprene
Battery Life
Latched: Up to 14 Hours
PTT: Up to 20 Hours
Dimensions 3.4 x 2.6 x 1.5in (WxHxD)
(86 x 66 x 38mm)
Weight 7.4oz (0.21kg) with Battery & Pouch
