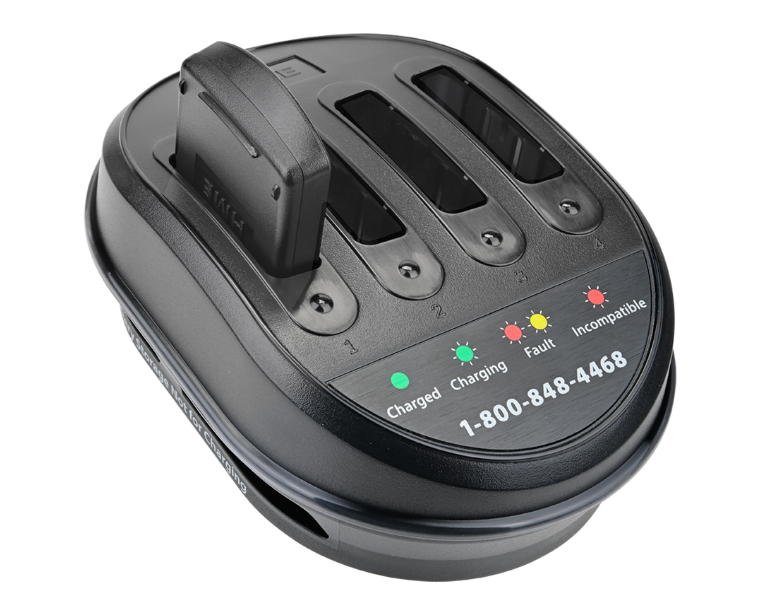

AC70
Details
- 4-port quick charger
- Charges 4 batteries simulatenously
- 4 battery storage slots
- LED status indicator lights
- Charge time is 2 hours
- Charges BAT70 lithium-ion batteries
- Desktop or wall mount options
- Wireless Connection to Base Station provides battery charging status
Item Code
AC70: Smart Battery Charger
BAT70: Lithium-ion Battery
CON-00004: Power Supply
EQUIP System Bundles
EQP-3UP-US: (3) User bundle w/ headsets: 2Ch, 5GHz, US
EQP-3UP-EU: (3) User bundle w/ headsets: 2Ch, 5Ghz, EU
EQP-3UP-AU: (3) User bundle w/ headsets: 2Ch, 5GHZ, AU
EQP-3UP-KR: (3) User bundle w/ headsets: 2Ch, 5GHZ, KR
EQP-3UP-JP: (3) User bundle w/ headsets: 2Ch, 5GHZ, JP
EQP-5UP-US: (5) User bundle w/ headsets: 2Ch, 5GHZ, US
EQP-5UP-EU: (5) User bundle w/ headsets: 2Ch, 5GHZ, EU
EQP-5UP-AU: (5) User bundle w/ headsets: 2Ch, 5GHZ, AU
EQP-5UP-KR: (5) User bundle w/ headsets: 2Ch, 5GHZ, KR
EQP-5UP-JP: (5) User bundle w/ headsets: 2Ch, 5GHZ, JP
Technical
Specifications
Power Supply
Input Voltage: 100-240V AC nomimal
Output Voltage: 5V; 4A
MTBF: 300,000 hours calculated
Charge Output: ~ 3W per port
Battery Charger
Input Voltage: 5V; 4A
Charge Output: ~3W per port
Wireless
Wireless PAN, 2.4 GHz Wireless Technology
Front/Top Panel
Four charging ports for BAT70
LED type: 4xRGB, for port/battery charging status
Side Panel
Four storage ports for BAT70
(Storage ports do not charge)
Environmental
Operating: 32° to 104°F (0° to 40°C)
Storage: -40° to 80°F (-40° to 176°C)
Humidity: 0-95% Non-Condensing
Dimensions
AC70
3.1 x 4.75 x 1.75in (WxHxD)
(78.74 x 120.65 x 44.45mm)
BAT70
1.6 x 1.8 x 0.24in (WxHxD)
(40.64 x 45.72 x 6.1mm)
Weight
AC70
0.9lbs (0.4kg)
BAT70
0.11lbs (0.05kg)
