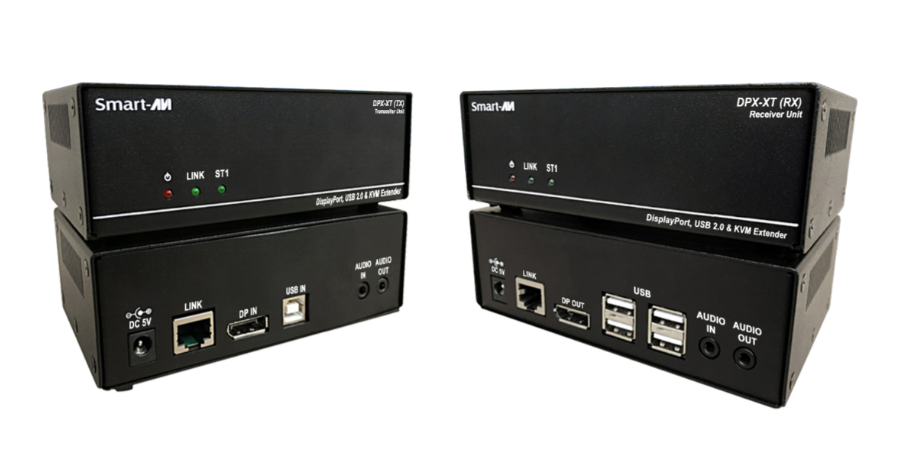

DPX-XT
4K DisplayPort with USB 2.0 KVM Extender.
Description
| VIDEO | |
|---|---|
| Format | DisplayPort 1.1 and 1.2 |
| Maximum Pixel Clock | 275 MHz |
| Input Interface (TX) | (1) DP female |
| Output Interface (RX) | (1) DP female |
| Resolution | Up to 3840 x 2160 @ 30 Hz |
| DDC | via AUX |
| Input Equalization | Automatic |
| Input Cable Length | Up to 15 ft. |
| Output Cable Length | Up to 15 ft. |
| USB | |
| Signal Type | USB 1.1 and USB 2.0 |
| Input Interface (TX) | (1) USB Type B (Female) |
| Output Interface (RX) | (4) USB Type A (Female) |
| AUDIO | |
| Frequency | 30KHz to 80KHz |
| Input Interface (TX) | (1) 3.5mm (Female) |
| Output Interface (RX) | (1) 3.5mm (Female) |
| OTHER | |
| Power | External 100-240 VAC/5VDC3A @ 20 W |
| Dimensions | 5.5” W x 1 7/8” H x 3 1/4” D |
| Weight | 1.0lb per TX/RX unit |
| Operating Temperature | 0-55 °C (32-131°F) |
| Storage Temperature | -20-85 °C (-4-185 °F) |
| Humidity | Up to 95% |
