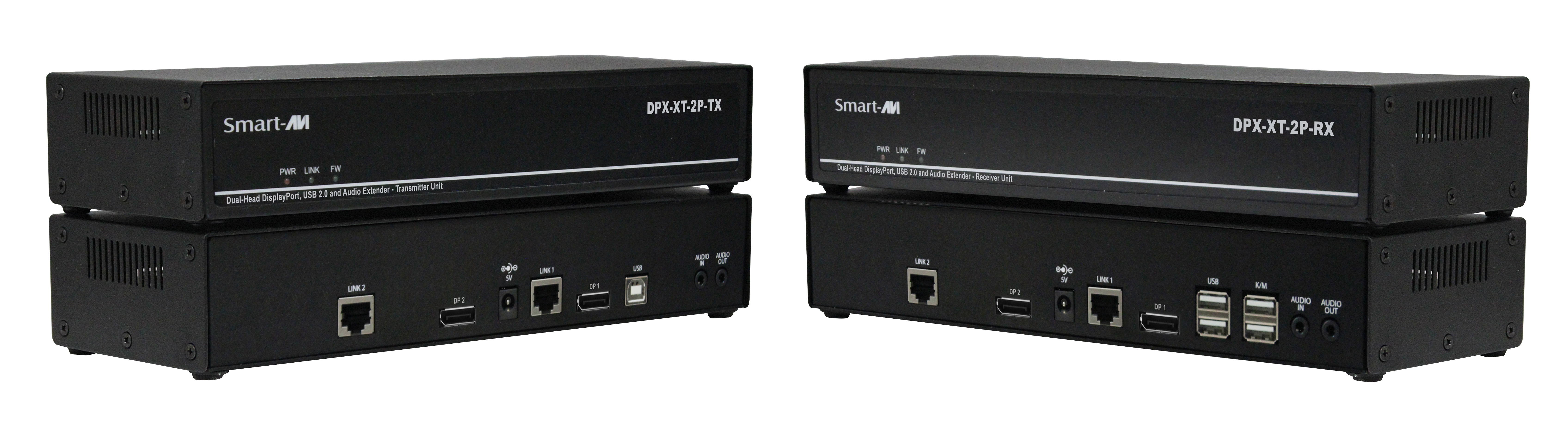

DPX-XT-2P
Dual-Head 4K DisplayPort with USB 2.0 KVM Extender.
Description
| VIDEO | |
|---|---|
| Format | DisplayPort 1.1 and 1.2 |
| Maximum Pixel Clock | 275 MHz |
| Input Interface (TX) | (2) DP female |
| Output Interface (RX) | (2) DP female |
| Resolution | Up to 3840 x 2160 @ 30 Hz |
| DDC | via AUX |
| Input Equalization | Automatic |
| Input Cable Length | Up to 15 ft. |
| Output Cable Length | Up to 15 ft. |
| AUDIO | |
| Format | Stereo |
| Input Interface | 3.5 mm Jack Socket (female) |
| Output Interface | 3.5 mm Jack Socket (female) |
| USB | |
| Input Interface (TX) | (1) USB Type B |
| Output Interface (RX) | (2) USB 1.1 Type A for KM Devices; (2) USB 2.0 Type A Transparent |
| Keyboard and mouse | Keyboard and mouse emulation |
| SYSTEM | |
| Interface | RJ-45 |
| Cable Requirements | CAT5/5e/6 |
| Maximum Length | 330 ft (100 m) |
| OTHER | |
| Power | 100-240 VAC/ 5VDC @ 3A/15W |
| Dimensions | 11.9” W x 1.7” H x 2.9” D |
| Weight | 1.75 lb (per unit) |
| Approvals | UL, CE, ROHS Compliant |
| Environmental Operating Temperature | +32 to +104°F (0 to +40°C) |
| Environmental Operating Humidity | 20% to 80% (non condensing) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Storage Humidity | Up to 95% (No Condensation) |
| Compliance EMC | FCC (Class A), CE (Class A), ICES-003 |
| Environmental Compliance | RoHS2 (CE) |
| Support Warranty | 1-year |
