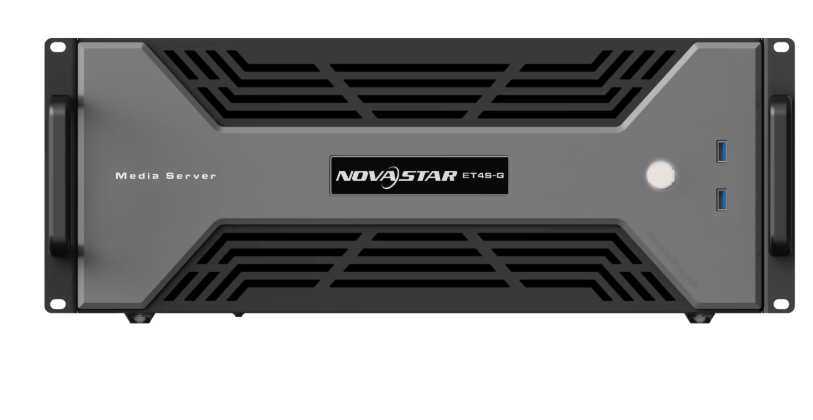

NovaStar ET4S-G
NovaStar ET4S-G Media Server offers 8K×4K output, pixel precision, and Kompass FX3 software for seamless visual experiences in exhibition halls
Description
NovaStar ET4S-G Media Server is a high-performance multimedia control system designed to deliver stunning visual experiences for multimedia exhibition halls, banquet halls, stage performances, and creative fixed installations. With support for 8K×4K output resolution, advanced video decoding, and pixel-to-pixel precision, the ET4S-G enables seamless playback and flexible content management. Equipped with intuitive Kompass FX3 media control software, this server streamlines stage display management, empowering users with superior creative freedom and effortless control.
Key Features
✅ Ultra-High-Definition Output:
- Supports up to 8K×4K output resolution with pixel-to-pixel accuracy
- Outputs through 4x DP 1.4 connectors, each up to 5120×2880@60Hz
- Four-connector mosaic output with a maximum width/height of 16,384 pixels
✅ Advanced Video Performance:
- Playback of 12 layers and 1 audio layer simultaneously
- Smooth playback of 1 layer of 8K×4K@60fps or 3 layers of 4K×2K@60fps SDR videos (hardware decoding)
- Compatible with video codecs: H.264, H.265 (HEVC), MPEG-4/2, WMV
✅ Creative Display Configuration:
- Free partitioning, reorganizing, and rotating of multiple outputs for irregular screen layouts
- Each output can be divided into up to 64 partitions for quick mapping and ultra-wide screens
- Supports sequence frame configuration and playback in BMP, TIFF, TGA, JPG, PNG formats
✅ Versatile Media Management:
- Built-in media library supporting videos, pictures, PowerPoint, Excel, Word, and PDF files
- Media collection configurations with NDI sources, capture devices, streaming media, and text sources
- Visualized program arrangement with live and pre-edit modes
- Crossfade effects, layer mask, cropping, keying, blurring, and opacity adjustments
✅ Audio Integration:
- Professional XLR audio outputs for left and right channels
- Additional 3.5mm audio connectors: Center/Subwoofer, Line IN/OUT, MIC, and Rear channel
- Audio properties are maintained when media within the same layer is replaced
✅ Precise Synchronization:
- LTC and MTC timecode input ensures synchronized playback control
- Multi-screen management with external frame synchronization via sync card
- Frame synchronization supported for multiple servers using HPG4000 and HPGA5000 graphics cards
✅ Flexible Control and Networking:
- Realtek 2.5Gb Ethernet port (RJ45) for fast networking
- HDMI CONTROL UI port for external monitor display (Max: 2K×1K@60Hz)
- USB 3.0 ports (front and rear) for mouse, keyboard, and media file import
- Control through VICP (Visual Intelligent Control Platform) software for efficient and user-friendly operation
✅ Robust Hardware Performance:
- Intel 12th Gen Core Processor (12700) for smooth, high-speed performance
- 32 GB DDR5 high-speed memory ensures stable playback of large media files
- 1 TB SSD for media storage (optional upgrade to 4 TB) and 250 GB SSD for system operations
- 750W power supply with silent cooling fan for reliable and quiet operation
Product Configurations
| Model | Graphics Card | Max Output | Video Memory | Playback Capacity |
|---|---|---|---|---|
| ET4S-G (P2) | MPG2200 (5 GB GDDR5X) | 4x 5120×2880@60Hz | 160-bit, 5 GB | 1x 8K×4K@30fps or 3x 4K×2K@60fps |
| ET4S-G (A4) | HPG4000 (8 GB GDDR6) | 4x 5120×2880@60Hz | 256-bit, 8 GB | 1x 8K×4K@60fps |
| ET4S-G (Custom) | HPGA5000 (24 GB GDDR6) | 4x 5120×2880@60Hz with 2x 8K×4K@60fps | 384-bit, 24 GB | 2x 8K×4K@60fps |
Optional Sync Card:
- Works with HPG4000 and HPGA5000 graphics cards
- Provides frame lock signal (2x RJ45) and external sync signal (1x BNC) for multi-server synchronization
Applications
- Multimedia Exhibition Halls: Create immersive visual displays with pixel-perfect clarity
- Banquet Halls: Deliver stunning video playback with synchronized audio and seamless transitions
- Stage Performances: Enable real-time editing and playback for live events
- Corporate Events: Enhance presentations with support for PowerPoint, PDFs, and more
ET Series Comparison
| Product Model | ET1S-G | ET2S-G | ET4S-G(P2) | ET4S-G(A4) | ET16S-G(2A4) | ET16S-G(3A4) |
|---|---|---|---|---|---|---|
| Chassis | 1U | 2U | 4U | 4U | ||
| Memory Size | 16G（DDR4） | 16G (DDR4) | 32G (DDR4) | 64G (DDR4) | 128G (DDR4) | |
| CPU | AMD Ryzen 5600H | 12th Gen Intel® Core (i5 12400) |
12th Generation Intel® Core Processor(i7 12700) | Single Intel Xeon Gold Processor |
Dual Intel Xeon Gold Processor | |
| Storage | M.2 SSD 250GB | M.2 SSD 500GB | 250GB M.2 SSD (System Driver) , 1TB M.2 SSD (Storage Driver) | 1TB M.2 SSD | 1TB M.2 SSD (System Driver) , 960GB U.2SSD (Storage Driver) |
|
| Graphics Card Model | Integrated Graphics | MPGT400 | MPG2200 | HPG4000 | 2x HPG4000 1xMPGT400 1xSync Card |
3x HPG4000 1xMPGT400 1xSync Card |
| Loading Capacity | 4096×2160@60Hz | 2×4096×2160@60Hz | 4×4096×2160@60Hz | 8× 4096×2160@60Hz | 12×4096×2160@60Hz | |
| Decoding Capacity | 1 layer of 4K@60 or 4 layers of 2K@60 | 1 layer of 8K@30 or 2 layers of 4K@60 |
1 layer of 8K@30 or 2 layers of 4K@60 |
1 layer of 8K@60 or 4 layers of 4K@60 |
2 layers of 8K@60 or 8 layers of 4K@60 |
3 layers of 8K@60 or 16 layers of 4K@60 |
| Program Quantity | Unlimited | Unlimited | Unlimited | Unlimited | ||
| Layer Quantity | Up to 4 layers and 1 audio layer | Up to 8 layers and 1 audio layer |
Up to 12 layers and 1 audio layer, with supported for expandability | 12 layers (24 layers with 2 graphics cards, 36 layers with 3 graphics cards, 48 layers with 4 graphics cards) and 1 audio layer, with supported for expandability |
||
| EDID Lock | √ | √ | √ | √ | ||
| Cascading | √ | √ | √ | √ | ||
| Frame Synchronization Splicing | / | / | / | √ | ||
| Dual-machine Backup | / | / | / | √ | ||
| Ipad Control | √ | √ | √ | √ | ||
| Protocol Control | √ | √ | √ | √ | ||
| Operation System | Windows 10 Enterprise LTSC |
Windows 10 Enterprise LTSC |
Windows 10 Enterprise LTSC | Windows 10 Enterprise LTSC | ||
| Software | Kompass FX1 | Kompass FX2 | Kompass FX3 (Dongle Included) | Kompass FX3 (Dongle Included) | ||
| Media Type | Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, digital clock |
Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock |
Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock, sequence frame |
Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock, sequence frame | ||
