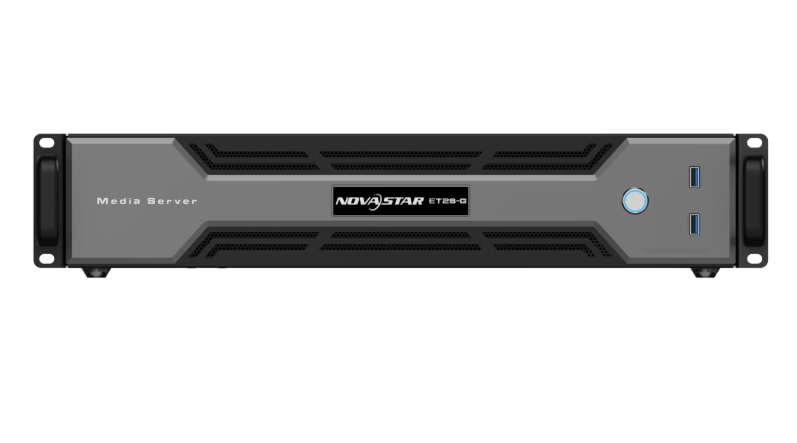

NovaStar ET2S-G
NovaStar ET2S-G Media Server: 8K output, UHD video decoding, intuitive software. Ideal for exhibitions, stages, and events. Precision and performance.
Description
NovaStar ET2S-G Media Server is a cutting-edge multimedia control system designed for professional stage performances, multimedia exhibition halls, banquet halls, and other small-to-medium fixed installation scenarios. With support for 8K×2K output capacity and ultra-high-definition video decoding, the ET2S-G ensures pixel-to-pixel precision, creative display configurations, and seamless media playback. Equipped with intuitive media control software, it offers simplified stage management and exceptional user interaction, making it the perfect choice for immersive visual experiences.
Key Features
✅ Ultra-High-Definition Output:
- Supports up to 8K×2K output resolution with pixel-to-pixel accuracy
- Outputs through 1x DP 1.2 and 2x HDMI 2.0 connectors
- Maximum single connector resolution: 4096×2160@60Hz
- Mosaic width or height up to 16,384 pixels
✅ Advanced Display Configuration:
- Supports creative mosaic displays with splitting, merging, and rotating outputs
- Each output can be divided into up to 64 partitions for quick mapping and ultra-wide screens
- Allows playback of 8 layers and 1 audio layer simultaneously
✅ Versatile Media Playback:
- Hardware decoding of 1 layer of 8K×2K@60fps or 2 layers of 4K×2K@60fps SDR videos
- Supports H.264, H.265 (HEVC), MPEG-4/2, WMV video codecs
- Compatible with various media formats: MP4, AVI, MKV, FLV, MOV, WMV, JPEG, PNG, GIF, MP3, AAC, WAV
- Playback of 1080p PowerPoint files with laser pointer support
✅ Flexible Program Control:
- Visualized program arrangement with live and pre-edit modes
- Real-time editing in live mode or pre-configured editing in pre-edit mode
- Auto program jump and crossfade transitions for seamless playback
- Configurable layer size, priority, cropping, keying, blurring, and opacity adjustments
✅ Network and Control Options:
- Built-in VICP (Visual Intelligent Control Platform) for efficient media management
- Realtek 2.5Gb Ethernet port (RJ45) for fast networking
- HDMI control UI port for connecting external monitors (Max: 2K×1K@60Hz)
- USB ports: 2x USB 3.0, 2x USB 2.0 for mouse, keyboard, and media file import
✅ Reliable Performance:
- Intel® 12th Gen Core Processor (i5-12400) and 16 GB DDR4 RAM ensure smooth performance
- 500 GB M.2 SSD for fast storage and quick media access
- 400W ATX open-frame power supply for stable operation
- Auto-start and auto-play functionality upon power-up
✅ User-Friendly Interface:
- Kompass FX2 media control software (license included)
- Built-in media library management with batch import and file sorting
- Supports NDI sources, streaming media, and website sources
Applications
- Multimedia Exhibition Halls: Deliver stunning visual displays with pixel-perfect clarity
- Banquet Halls: Create immersive atmospheres with synchronized video and audio playback
- Stage Performances: Ensure seamless live performances with real-time editing and playback
- Corporate Events: Professional media presentations with PowerPoint support and laser pointer control
ET Series Comparison
| Product Model | ET1S-G | ET2S-G | ET4S-G(P2) | ET4S-G(A4) | ET16S-G(2A4) | ET16S-G(3A4) |
|---|---|---|---|---|---|---|
| Chassis | 1U | 2U | 4U | 4U | ||
| Memory Size | 16G（DDR4） | 16G (DDR4) | 32G (DDR4) | 64G (DDR4) | 128G (DDR4) | |
| CPU | AMD Ryzen 5600H | 12th Gen Intel® Core (i5 12400) |
12th Generation Intel® Core Processor(i7 12700) | Single Intel Xeon Gold Processor |
Dual Intel Xeon Gold Processor | |
| Storage | M.2 SSD 250GB | M.2 SSD 500GB | 250GB M.2 SSD (System Driver) , 1TB M.2 SSD (Storage Driver) | 1TB M.2 SSD | 1TB M.2 SSD (System Driver) , 960GB U.2SSD (Storage Driver) |
|
| Graphics Card Model | Integrated Graphics | MPGT400 | MPG2200 | HPG4000 | 2x HPG4000 1xMPGT400 1xSync Card |
3x HPG4000 1xMPGT400 1xSync Card |
| Loading Capacity | 4096×2160@60Hz | 2×4096×2160@60Hz | 4×4096×2160@60Hz | 8× 4096×2160@60Hz | 12×4096×2160@60Hz | |
| Decoding Capacity | 1 layer of 4K@60 or 4 layers of 2K@60 | 1 layer of 8K@30 or 2 layers of 4K@60 |
1 layer of 8K@30 or 2 layers of 4K@60 |
1 layer of 8K@60 or 4 layers of 4K@60 |
2 layers of 8K@60 or 8 layers of 4K@60 |
3 layers of 8K@60 or 16 layers of 4K@60 |
| Program Quantity | Unlimited | Unlimited | Unlimited | Unlimited | ||
| Layer Quantity | Up to 4 layers and 1 audio layer | Up to 8 layers and 1 audio layer |
Up to 12 layers and 1 audio layer, with supported for expandability | 12 layers (24 layers with 2 graphics cards, 36 layers with 3 graphics cards, 48 layers with 4 graphics cards) and 1 audio layer, with supported for expandability |
||
| EDID Lock | √ | √ | √ | √ | ||
| Cascading | √ | √ | √ | √ | ||
| Frame Synchronization Splicing | / | / | / | √ | ||
| Dual-machine Backup | / | / | / | √ | ||
| Ipad Control | √ | √ | √ | √ | ||
| Protocol Control | √ | √ | √ | √ | ||
| Operation System | Windows 10 Enterprise LTSC |
Windows 10 Enterprise LTSC |
Windows 10 Enterprise LTSC | Windows 10 Enterprise LTSC | ||
| Software | Kompass FX1 | Kompass FX2 | Kompass FX3 (Dongle Included) | Kompass FX3 (Dongle Included) | ||
| Media Type | Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, digital clock |
Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock |
Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock, sequence frame |
Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock, sequence frame | ||
