PA LOC02

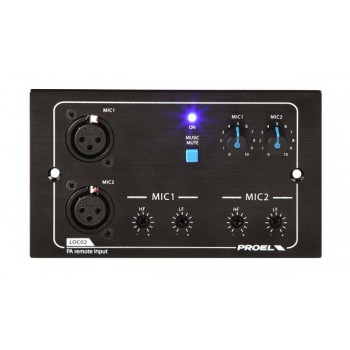

 LOC02 is a wall-mounted remote panel featuring two XLR microphone inputs to be combined with a MATRIX88 central unit. It operates the connected microphones within the audio zone to which the control is assigned. The MUTE button mutes the music program coming from the central unit (MATRIX88) to reproduce only the signals coming from the microphone inputs.  Volume and tone levels of each microphone input can be adjusted separately. A UTP CAT5 cable provides power to the panel from the matrix if the cable run between the two is no more than 50 m. Whenever the cable length is longer than 50 m, an additional + 24 V DC power supply will be needed. A wall-mounting metal box for LOC02 is available.

Technical Specifications

• Communication Speed: 57,600 bpsd
• Communication Distance: ≤ 1 km (in absence of external interference)
• MIC Input Sensitivity: 10 mV
• Frequenci Response: 50Hz-18KHz
• Signal-to-Noise Ratio: MIC ≥65 dB - BGM ≥75 dB
• Communication THD: 1% @1 kHz
• Power consumption: 400 mA
• Power Supply: 24 V DC
• Weight: 161 g
