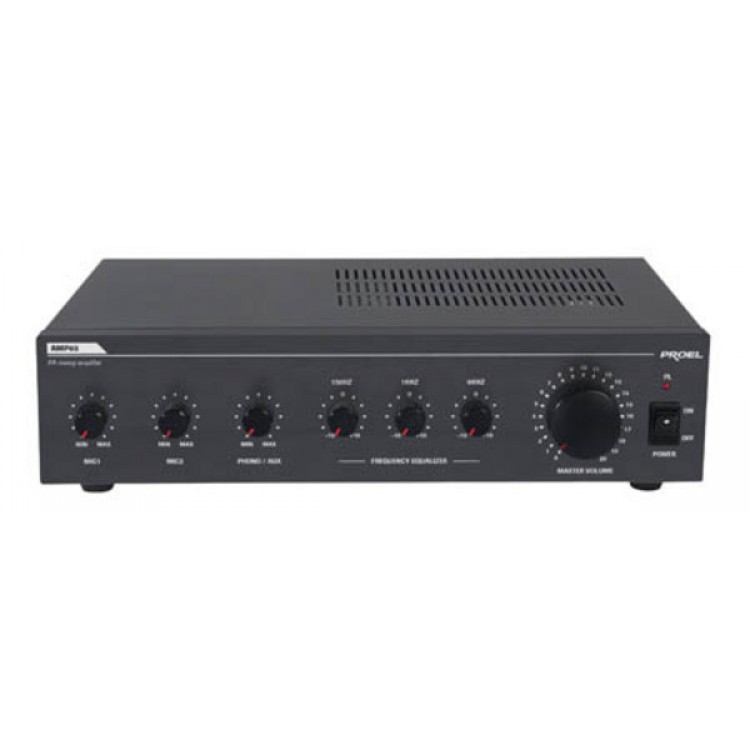

PA AMP03

Proel AMP03 is a mixer amplifier designed to allow microphone announcements and music programs diffusion in all PA applications.

Main features:

• Two microphone inputs unbalanced with 6,3 mm
• One Aux input and One Phone which can be rear switched
• Power led indicator
• Main volume control
• AUX/PHONO volume control
• MIC1 volume control
• MIC2 volume control
• Low, medium & high volume control
• Ground terminal connector
• Four outputs amongst which three are at constant impedance (4/8/16 ohm) and one at constant voltage (100V)
• MIC1 input with priority function, apt to receive the microphone stand BM100 (stand to be used with an adaptor and eventual chime circuit)

Technical Specifications

• Output power: RMS / MAX: 30/45W
• Inputs: 2x MIC unbalanced, 1x PHONO, 1x AUX
• Input Sensitivity: MIC: 2mV / 5 Kohm (MIC1 with priority) - PHONO: 3mV / 50 Kohm - AUX: 150mV / 10 Kohm
• Controls: 1 MAIN VOLUME CONTROL - 1 PHONO/AUX VOLUME CONTROL - 2 MIC VOLUME CONTROLS - 1 TREBLE TONES CONTROL - 1 MIDDLE TONES CONTROL - 1 BASS TONES CONTROL
• Loudspeakers outputs: 100V - 4/8/16 Ohm
• Frequency response: 65Hz - 18KHz (-3dB)
• Distortion (THD): < 1% (@ Pnom 1KHz)
• S/N Ratio: > 55dB
• Power Supply: 230Vac 50/60Hz
• Operating temperature: 0 - 40ºC
• Input/Output Connectors: MIC: 2x JACK 6.3mm - PHONO: 1x RCA L/R - AUX: 1x RCA L/R
• OTHERS IN/OUT: screw terminals
• Dimensions: (W x H x D): 320 x 80 x 190mm
• Weight: 4.5Kg
