DL27M

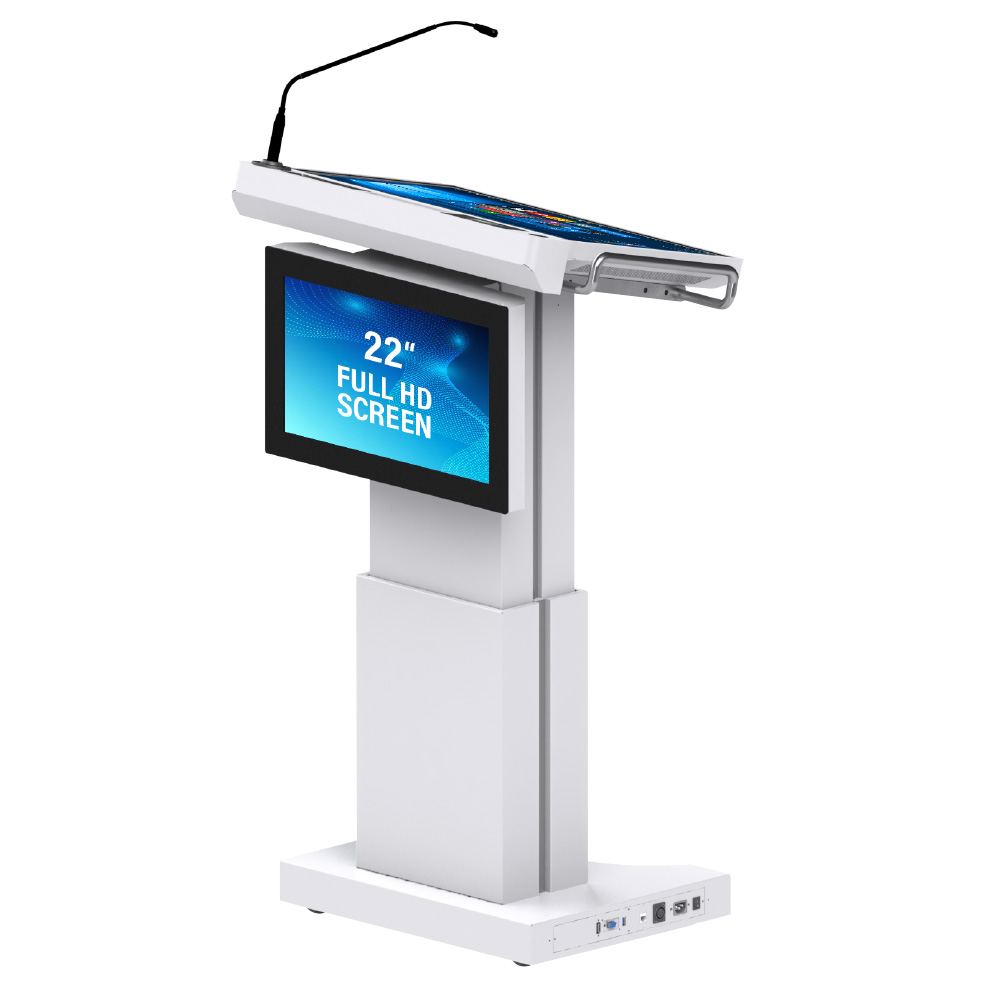

Pupitre de conférence avec écran tactile 27" au dessus et 22" en face
Description
DL27M Digital Podium
The DL27M is specially designed podium, adjustable to various heights according to the needs the speaker. The 27″ high precision touch screen allow the speaker to take notes and interact with the presentation more convenietly. Connecting your projector and sound system to the DL27M is as easy as connecting the cables.
- MultiTouch Speaker Screen
- Front screen – with Embedded Signage Media Player
- Player PC : Intel i3 4GB, 120 GB SSD Win 10 Embedded iot OS
- Remote Control Height Adjustment
- Microphone
- Creapen Annotation
- Digital Touch Timer
| Model: | DL27M | DL27M-F |
| Main Specifications | ||
| Speaker Screen | 27″ Multi touch capacitive | 27″ Multi touch capacitive |
| Front Screen | n/a | 22″ with built-in signage media player |
| Built-in PC for Speaker Screen | intel i3 4GB Ram, 120 GB SSD, Win 10 Embedded ioT | intel i3 4GB Ram, 120 GB SSD, Win 10 Embedded ioT |
| Microphone | 1 pcs 18″ Gooseneck Condenser Microphone | 1 pcs 18″ Gooseneck Condenser Microphone |
| Lifting Column | Available | Available |
| Detailed Specifications | ||
| Front Panel | 22″ | |
| Screen Specifications | ||
| Resolution | 1920×1080 FHD | |
| Brightness | 250 cd/m2 | |
| Aspect ratio | 16:9 | |
| Panel Type | IPS | |
| Front Panel Player | Built-in Digital Signage Media Player | |
| Front Panel Content Management Software | Available |
| Lecturer Panel | 27″ | 27″ |
| Screen Specifications | ||
| Resolution | 1920×1080 FHD | 1920×1080 FHD |
| Brightness | 250 cd/m2 | 250 cd/m2 |
| Panel Type | IPS | IPS |
| Aspect ratio | 16:9 | 16:9 |
| Touch Technology | Capacitive | Capacitive |
| Touch Points | 10 points | 10 points |
| Lecturer Panel PC Specifications | ||
| CPU | 4th Generation Intel Core i3 | 4th Generation Intel Core i3 |
| RAM | 4 GB DDR4 | 4 GB DDR4 |
| HDD | 120 GB SSD | 120 GB SSD |
| Operating System | Windows Embedded 10 IoT | Windows Embedded 10 IoT |
| Microphone | ||
| Length | 18″ | 18″ |
| No of microphone | 1 pcs | 1 pcs |
| Output Connector | 3-way XLR (Male) | 3-way XLR (Male) |
| Microphone Type | Cardioid | Cardioid |
| Frequency Response | 50 -18 kHz | 50 -18 kHz |
| Sensitivity (at 1,000Hz) | -60dB ± 3dB | -60dB ± 3dB |
| Impedance | 220Ω | 220Ω |
| Power ON indicator | LED | LED |
| Power requirement | Phantom Power (48V) | Phantom Power (48V) |
| Height Adjust Engine | ||
| Movement | Vertical (Up/Down) | Vertical (Up/Down) |
| Control | By Buttons (Up/Down) | By Buttons (Up/Down) |
| Speed | Max speed: 38 mm/s | Max speed: 38 mm/s |
| Lifting strength | 700N | 700N |
| Locking System | Automatic Looking when engine not working | Automatic Looking when engine not working |
| Engine Type | Electrical | Electrical |
| Remote control | Available | Available |
| Timer & Chronometer | ||
| Screen size | 3,5″ | 3,5″ |
| Clock | Available | Available |
| Timer | Available | Available |
| Stopwatch | Available | Available |
| Touch | Single touch | Single touch |
| Inputs (on Speaker Panel) | ||
| USB | USB 2.0 and USB 3.0 (for internal PC) | USB 2.0 and USB 3.0 (for internal PC) |
| Height udjustment | up&down | up&down |
| Outputs (Bottom of Podium) | ||
| HDMI | Available | Available |
| Ethernet | Available | Available |
| XLR for microphone | Available | Available |
| USB | USB 2.0 (for internal PC) | USB 2.0 (for internal PC) |
| Power | ||
| Power Input | 230V 50Hz | 230V 50Hz |
| Power Consumption | 400W (max) | 450W (max) |
| Peripherals &other features | ||
| Color | Grey (RAL 7047) | Grey (RAL 7047) |
| Packing | Wooden box export packing | Wooden box export packing |
| Mechanical Specs | ||
| Minimum Height | 783 mm | 783 mm |
| Maximum Height | 1233 mm | 1233 mm |
| Outline Dimension (mm) | Set: 526 x 798 x 783 | Set: 550 x 800 x 1091 |
| Package: 622 x 894 x 989 | Package: 670 x 920 x 1300 | |
| Weight (kg) | Set: 63 kg | Set: 68 kg |
| Package: 108 kg | Package: 112 kg |
| Optional features | Flight case | Flight case |
