DL24B
Pupitre de conférence avec écran 43" en face
Description

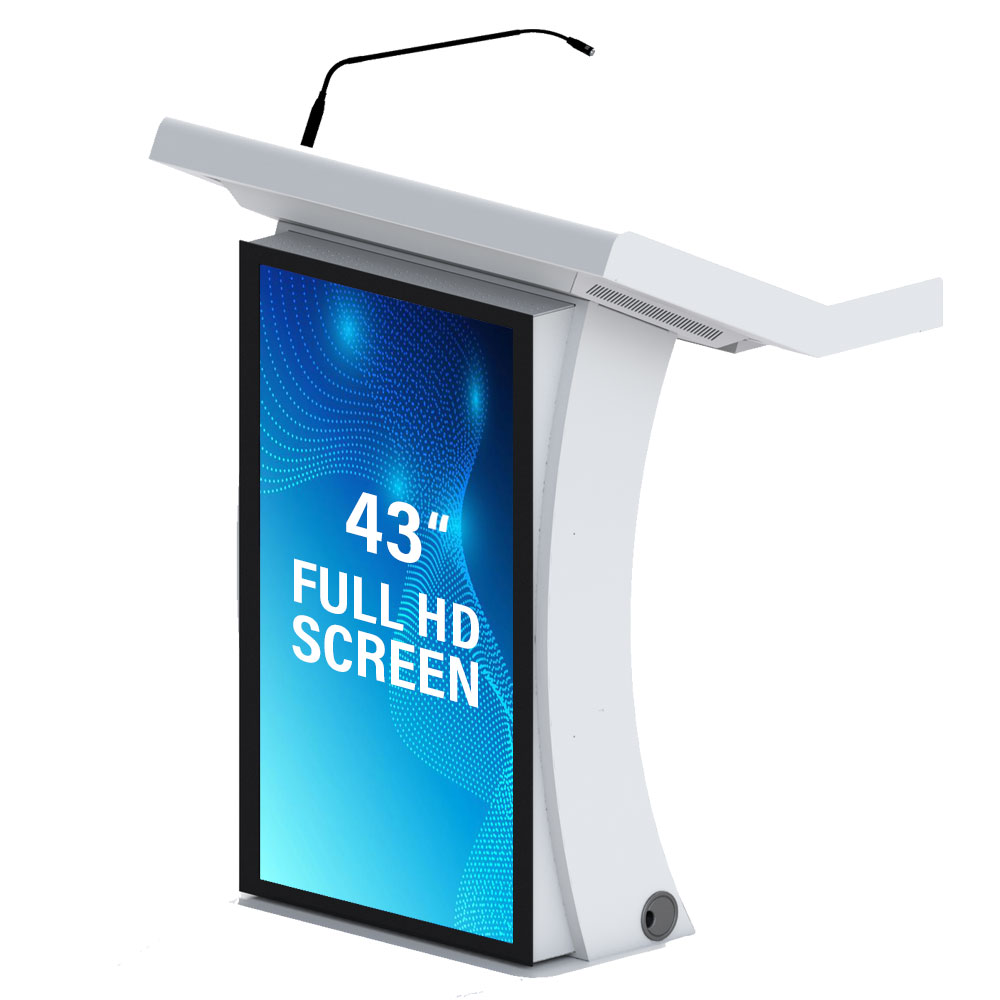

DL24B Digital Podium
DL24B is designed to meet the basic needs in a conference room. Connecting the existing projector and sound system to DL24B is easy. In case there is not any projector, sound system, or network connection. DL24B can satisfy your needs as astand alone product.
- MultiTouch Speaker Screen
- Front screen – with Embedded Signage Media Player
- Player PC : Intel i3 4GB, 120 GB SSD Win 10 Embedded iot OS
- Creapen Annotation
- Microphone
- Digital Touch Timer
| Model: | DL24B |
| Main Specifications | |
| Speaker Screen | 22″ Multi touch capacitive |
| Front Screen | 43″ with built-in signage media player |
| Built-in PC for Speaker Screen | intel i3 4GB Ram, 120 GB SSD, Win 10 Embedded ioT |
| Microphone | 1 pcs 18″ Gooseneck Condenser Microphone |
| Detailed Specifications | |
| Front Panel | 43″ |
| Screen Specifications | |
| Resolution | 1920×1080 FHD |
| Brightness | 500 cd/m2 |
| Aspect ratio | 16:9 |
| Panel Type | IPS |
| Front Panel Player | Built-in Digital Signage Media Player |
| Front Panel Content Management Software | Available |
| Lecturer Panel | 22″ |
| Screen Specifications | |
| Resolution | 1920×1080 FHD |
| Brightness | 250 cd/m2 |
| Panel Type | IPS |
| Aspect ratio | 16:9 |
| Touch Technology | Capacitive |
| Touch Points | 10 points |
| Lecturer Panel PC Specifications | |
| CPU | 4th Generation Intel Core i3 |
| RAM | 4 GB DDR4 |
| HDD | 120 GB SSD |
| Operating System | Windows Embedded 10 IoT |
| Microphone | |
| Length | 18″ |
| No of microphone | 1 pcs |
| Output Connector | 3-way XLR (Male) |
| Microphone Type | Cardioid |
| Frequency Response | 50 -18 kHz |
| Sensitivity (at 1,000Hz) | -60dB ± 3dB |
| Impedance | 220Ω |
| Power ON indicator | LED |
| Power requirement | Phantom Power (48V) |
| Timer & Chronometer | |
| Screen size | 3,5″ |
| Clock | Available |
| Timer | Available |
| Stopwatch | Available |
| Touch | Single touch |
| Inputs (on Speaker Panel) | |
| USB | USB 2.0 and USB 3.0 (for internal PC) |
| Outputs (Bottom of Podium) | |
| HDMI | Available |
| Ethernet | Available |
| XLR for microphone | Available |
| USB | USB 2.0 (for internal PC) |
| Power | |
| Power Input | 230V 50Hz |
| Power Consumption | 450W (max) |
| Peripherals &other features | |
| Color | White |
| Packing | Wooden box export packing |
| Mechanical Specs | |
| Outline Dimension (mm) | Set: 742 x 950 x 1159 |
| – | |
| Weight (kg) | – |
| – |
| Optional features | Front screen PC |
| Flight case |
