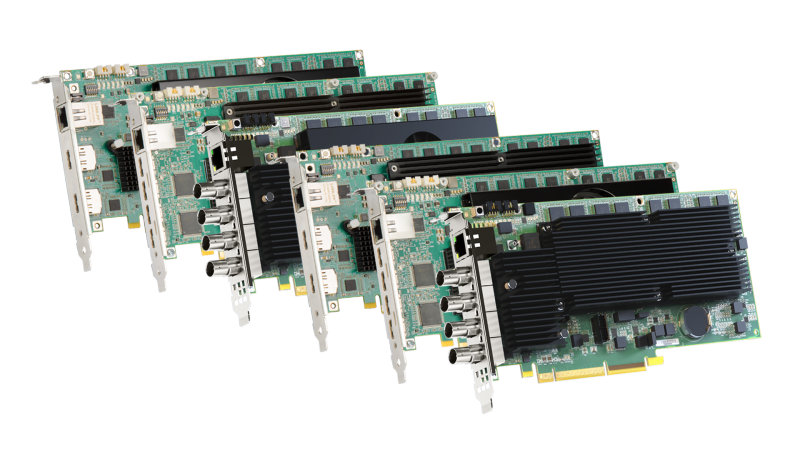

Mura IPX 4K Capture & IP Decode Series
These PCI Express® cards can stream and record an entire video wall or selected regions of interest, with pixel for pixel or scaled down representation of the display wall anywhere on the network. Mura IPX 4K capture and IP encode/decode can easily satisfy system builder requirements through the mixing and matching of a wide selection of Matrox video wall components. Ideal for control rooms, digital signage, AV presentation, security, and other applications that involve high-density capture, encoding, streaming, recording, decoding, and control operations.
Mura IPX 4K Capture & IP Decode Series Technical Specifications
| Product | |
| Part Number |
MURAIPXI-D4JF (4x Mini HDMI, fan sink) MURAIPXI-D4JHF (4x Mini HDMI, fanless) MURAIPXI-D2MF (2x DisplayPort, fan sink) MURAIPXI-D2MHF (2x DisplayPort, fanless) |
| Bus Interface |
PCIe x16 Gen 2 mechanical (x8 electrical) |
| Connectivity | |
| Video Input |
Number of channels: MURAIPXI-D4JF / MURAIPXI-D4JHF: Formats: MURAIPXI-D4JF / MURAIPXI-D4JHF: |
| Network Connector |
1x 10/100/1000 Base-T RJ45 Ethernet Port |
| Multi-Unit Support |
Yes |
| Performance | |
| Maximum Video Resolutions |
Support for custom resolutions; contact Matrox Video for details. |
| Memory |
8 GB |
| Data Transfers |
34 Gbit/sec |
| Video Input Resolutions |
4096x2160 @ 60Hz*, |
| Color Space and Chroma Sub-Sampling |
RGB: 8:8:8, 10:10:10 (24/32 bits per pixel) |
| Video and Audio Processing | |
| Clone Mode |
Yes |
| Rotation (input) |
Yes |
| Rotation (output) |
Yes |
| Video Scaling |
Yes, Matrox Advanced MultiTap Video Scaling Engine for 4K to SD multi-channel downscaling and SD to 4K multi-channel upscaling |
| Video Cropping |
Yes |
| Video Compositing |
Multi-Channel Video Composite/Key/Blend/Crop/Mirror/Flip |
| HDCP Support |
Yes |
| Audio Output Format |
AAC, PCM, Stereo, and Mono |
| Audio Sampling Frequency |
Between 32 KHz and 96 KHz |
| Codec | |
| Video Decoding Formats |
H.264/MPEG-4 Part 10 (AVC) up to level 5.2 |
| Decoding Profiles |
Baseline Profile (BP) Main Profile (MP) High Profile (HiP) High 10 Profile (Hi10P) High 4:2:2 Profile (Hi422P) High 4:4:4 Predictive Profile Separate Plane (Hi444PP) |
| Decoder Bitrates Range |
100 Kbps to 500 Mbps CABAC, |
| Decoding Rate Control |
Constant Bitrate (CBR) |
| Decoding | |
| Decoding Capability |
2x 3840x2160 @ 60Hz, *Standard resolutions listed above. Support for custom resolutions available. For specific requirements, contact Matrox Video. |
| Network | |
| Network Standard |
10/100/1000 Base-T Ethernet Auto-detect Half/full duplex |
| Routing Scheme |
Unicast Multicast Multi-unicast |
| IP Addressing |
IPv4 IPv6 DHCP (default) and static IP |
| Streaming Protocols |
SRT *Feature not yet supported. Please view Release Notes for the latest supported protocols. |
| Command and Control |
RS232 Telnet HTTP/HTTPS |
| Physical | |
| Product Dimensions |
9.02 (L) x 4.38 (H) inches |
| Unit Weight |
MURAIPXI-D2MF / MURAIPXI-D4JF: MURAIPXI-D2MHF / MURAIPXI-D4JHF: |
| Cooling |
With fan: Fanless: |
| Hardware & Software | |
| Software |
MuraControl for Windows (21 -day free trial) |
| Environmental | |
| Operating Conditions |
Temperature: 0 to 45 degrees Celsius Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m) Humidity: 20% to 80% non-condensing |
| Storage Conditions |
Temperature: -40 to 65 degrees Celsius Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m) Humidity: 10% to 90% non-condensing |
| Power Consumption |
24.6W (12V), 6.105W (3.3V) [Total: 30.705W] |
| General | |
| Supported Operating Systems (hardware) |
Linux® & all 64-bit Professional, Standard, Embedded, and Server versions of Windows 10 and Windows 11 |
| EMC/EMI Device Class |
Class B |
| EMC/EMI Compliance |
ACMA CE (EU) FCC (US) ICES-3 (Canada) MSIP VCCI (Japan) |
| Environmental Compliance |
China RoHS CSA RoHS EU RoHS REACH |
| Warranty |
3 Years* (fanless) *With free online or telephone support |
