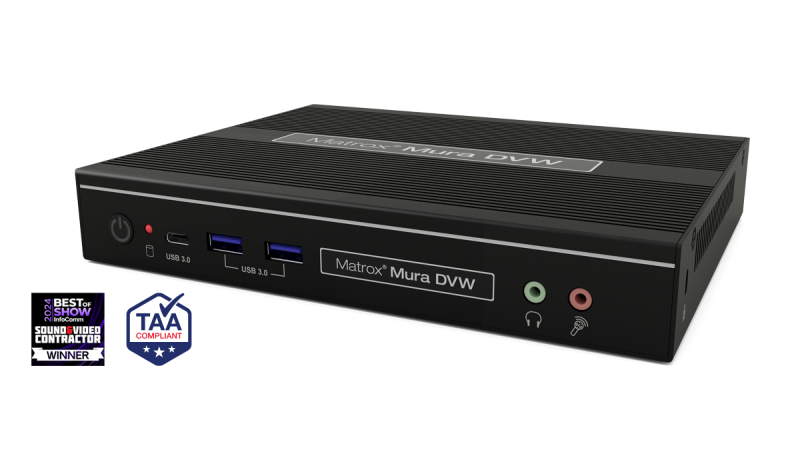

Matrox Mura DVW Appliance
Matrox Mura DVW Appliance Technical Specifications
| Product | |
| Part number |
DVW-Q4KY-NA (Canada/US power cord) DVW-Q4KY-EU (European Union power cord) DVW-Q4KY-UA (UK and Au/Nz power cords) |
| Cooling | Low-noise dual ball bearing fan |
| Connectors |
Four HDMI outputs with locking mechanism 2.5 and 1GbE RJ45 ethernet |
| Maximum output resolutions | Max. 4096x2160 @ 60Hz |
| Form factor |
Standalone appliance, 1U, 1/2 rack (horizontal) |
| Network Interface | |
| Standard |
Ethernet 10/100/1000/2.5G base-T, auto-detect, half/full-duplex |
| Connector | RJ45 |
| IP version | IPv4/IPv6 |
| Distributed method | Unicast, multicast and multiple unicast |
| IP addressing | DHCP (default) and Static IP |
| Streaming & Control Protocols | |
| Streaming protocols | RTSP, SRT |
| Command & control protocols | Telnet and HTTPS |
| Color Space | |
| Pixel formats |
RGB: 8:8:8, 10:10:101 (24/32 bits per pixel), YUV: 4:4:4, 4:2:0 (8/101 bits per component), color space conversion support |
| Video & Audio Processing | |
| Video compositing | Multi-channel video composite/key/blend/crop/mirror/flip |
| Audio | Future software feature |
| HDCP compliance | Yes1 |
| Video Decoding | |
| Codec engine |
H.264/MPEG-4 Part 10 (AVC), up to level 5.2 H.265 (HEVC), up to level 6.2 |
| H.264 and H.265 decode |
For both H.264 and H.265: 1x 8K60, 2x 8K30, 4x 4K60, 8x 4K30, 16x 1080p60 |
| Rate control |
Constant bitrate (CBR), variable bitrate (VBR), VBR with constraints, configurable GOP (group of pictures) structure |
| Environmental & Power Conditions | |
| Operating conditions |
Temperature: 0 to 403 degrees Celsius Humidity: 10% to 90% non-condensing |
| Storage conditions |
Temperature: -20 to 70 degrees Celsius Humidity: 20% to 80% non-condensing |
| Typical power consumption | 45W (12-19V) |
| Power supply | 19V, 90 Watt PSU with locking mechanism |
| General Specifications | |
| Dimensions | L: 19cm (7.48in) x W: 14.8cm (5.83in) x H: 3cm (1.18in) |
| Rackmount | Vesamount bracket included, rackmount compatible |
| Regulatory compliance | Class A: FCC, CE |
| Environment compliance | EU RoHS |
| Warranty | 2 years2 |
