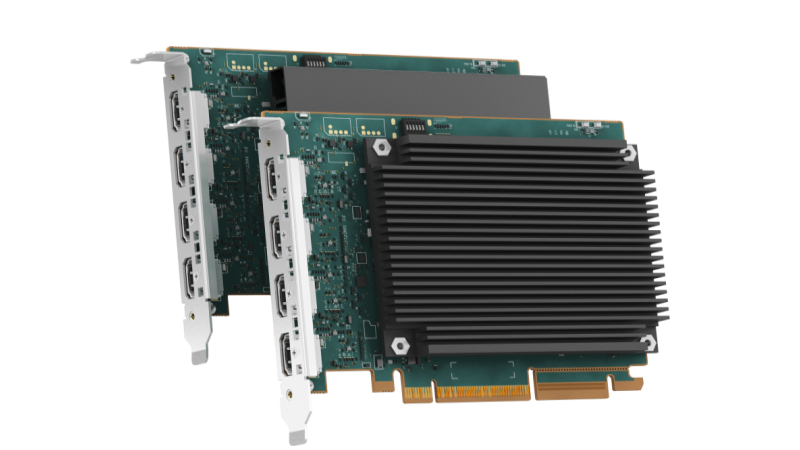

Matrox Mura C4K
Mura C4K Technical Specifications
|
Product |
||
|
Part Number |
MURA-C4KH |
MURA-C4K |
|
Cooling |
Passive |
Active |
|
Connectors |
4x HDMI 2.11 |
|
|
Maximum input resolutions |
4x 4096x2160 60Hz, 10-bit |
|
|
Bus interface |
PCIe Gen 3.0 x16 (x8 electrical) |
|
|
Form factor |
Standard height, half length, single slot |
|
|
Color Space |
||
|
Pixel Transfer Formats |
RGB: 8:8:8, 10:10:10 (24/32 bits per pixel), YUV: 4:4:4, 4:2:2, 4:2:0 (8/10 bits per component), Color Space Conversion Support |
|
|
Video & Audio Processing |
||
|
Audio Format |
L-PCM, up to two channels |
|
|
Audio Sampling Rate |
Between 32 KHz and 96 KHz |
|
|
HDCP Compliance |
HDCP v1.4 & v2.3 are supported with Mura C4K capture cards and Matrox LUMA Pro graphics cards2 |
|
|
Environmental & Power Conditions |
||
|
Conditions |
Operating: Temperature: 0 to 45 degrees Celsius Humidity: 20% to 80% non-condensing Altitude: from 650 hPA (3580m) to 1013 hPa (0m) |
|
| Storage Conditions |
Storage: Temperature: -40 to 70 degrees Celsius Humidity: 10% to 90% non-condensing Altitude: from 192 hPA (12000m) to 1020 hPa (-50m) |
|
|
Typical Power Consumption |
29.8W typical, 32W Max |
|
|
General Specifications |
||
|
Dimensions (L x H)/Weight3 |
5.953 inches (L) x 4.724 (H) inches 15.120 cm (L) x 12.615 cm (H) 0.66 lbs (298 grams) |
5.953 inches (L) x 4.724 (H) inches 15.120 cm (L) x 12.615 cm (H) 0.58 lbs (264 grams) |
|
OS Support |
Windows 10/11/LTSC4 |
|
|
Regulatory Certifications |
FCC (US) Class B, CE (European Union) Class B, RCM (Australia/New Zealand) Class B, KC (Korea) Class B, ICES-3 (Canada) Class B, UKCA (United Kingdom) Class B. |
|
|
Environment Certifications |
EU RoHS, China RoHS, REACH |
|
|
Warranty |
3 years |
2 years |
|
Accessories (sold separately) |
||
|
Secure cable solution |
SK-SLNC-4 |
|
