Product

Part number

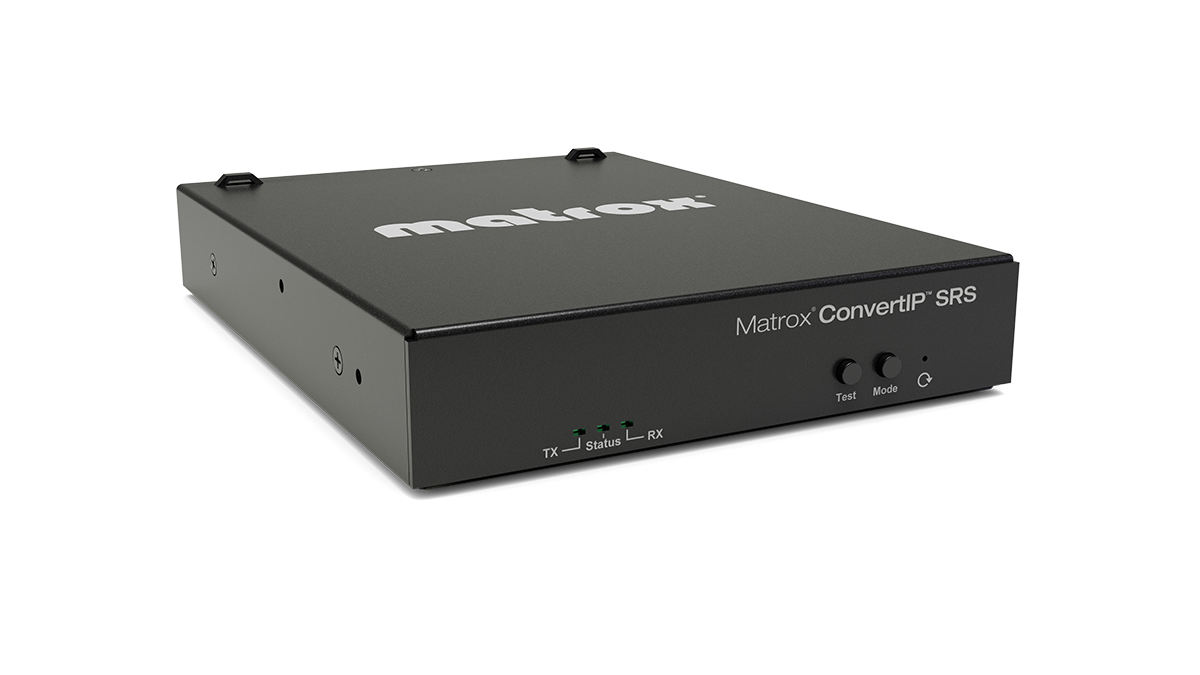

CIP-SRS

Form factor

• Standalone appliance

• Rack mountable: 1U, 1/3 rack (horizontal)

Connectivity

Video input

• TX mode: 12G SDI

• RX mode: No input

Video output

• TX mode: No output

• RX mode: 12G SDI

Video resolution

HD and 4K resolutions (including broadcast)

Genlock

No

VANC ancillary data processing

Yes

Audio input/output

Up to 16 channels of audio embedded in SDI output signal

Network connector

1x RJ45 LAN port for Media and Control with PoE+ (1/2.5G)

RS-232

No

Control and management

• Matrox ConvertIP Command Center (web UI)

• NMOS support (see ConductIP)

• Matrox ConvertIP Manager (software application)

Performance

Maximum video resolutions

4096 x 2160 60p

Bit depth and color space

• YCbCr 4:2:2 10-bit

• SDR/HDR1

Video and Audio Processing

Video scaling

High Quality multi-tap 10-bit Up/Down Scaler

Video deinterlacing

Yes1

Color space conversion

Yes

HDCP support

Not applicable

Encoding Formats

Video2

Default compressed bitrates: 200 Mbps for HD content, 820 Mbps for 4K content

• ProAV Colibri codec included

  • 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps

• JPEG-XS codec upgrade required3

  • 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps

Audio

Uncompressed PCM (~1 Mbps/ch)

Latency

Less than a 1/4 frame (<4 ms)

Network

Network standard

RJ45 providing 1 GbE or 2.5 GbE Base-T Ethernet

IP addressing

• IPv4

• IPv61

• DHCP (default) and static IP

Supported protocols

• SMPTE ST 2110 (-10, -22, -30, -401)

• SMPTE 2059 (-1, -2)

• IPMX

Redundancy

No

Command and control

HTTPS over TCP

Discovery, registration and control

NMOS discovery and control according to standards IS-04 v 1.2 and 1.3 and IS-05 1.0 and 1.1

PoE+

Yes (IEEE 802.3at Type 2)

Physical
