ConvertIP DRS 

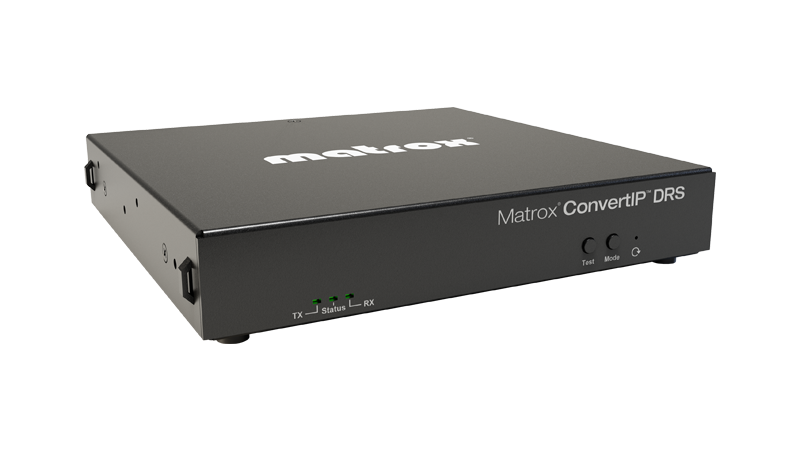

Matrox ConvertIP DRS features 12G-SDI, genlock, and three RJ45 ports on a single device. ConvertIP DRS is designed for 1G AV workflows and is optimal for an ultra-low latency experience. The device can receive power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.
Description

ConvertIP DRS Technical Specifications

Product

Part number

CIP-DRS2

Form factor

  • Standalone appliance

  • Rack mountable: 1U, 1/2 rack (horizontal)

Connectivity
Video input
  • TX mode: 1.5G, 3G, and 12G SDI
  • RX mode: No input

Video output

  • TX mode: No output

  • RX mode: 1.5G, 3G, and 12G SDI

Video resolution

HD and 4K resolutions (including broadcast)
Genlock Bi-Level output support
VANC ancillary data processing Yes

Audio input/output

  • Up to 16 channels of audio embedded in SDI signal

  • Unbalanced analog stereo input via 1/8″ (3.5mm) jack

  • Line Level

Network connector

3x RJ45 ports

  • LAN 1 for Media and Control with PoE+ (1/2.5G)

  • LAN 2 for redundant Media and Control (1/2.5G)

  • Control LAN for Control data only (100/1000 Mbps)
RS-232 Yes1

Control and management

  • Matrox ConvertIP Command Center (web UI)

  • NMOS support (see ConductIP)

  • Matrox ConvertIP Manager (software application)

Performance

Maximum video resolutions

4096 x 2160 60p
*All standard desktop GPU resolutions supported

Bit depth and color space

  • YCbCr 4:2:2 10-bit

  • SDR/HDR2

Video and Audio Processing

Video scaling

High Quality multi-tap 10-bit Up/Down Scaler

Video deinterlacing

Yes1

Color space conversion

Yes

HDCP support

Not applicable

Encoding Formats

Video3

Default compressed bitrates: 200 Mbps for HD content, 820 Mbps for 4K content

  • ProAV Colibri codec included
    • 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps
  • JPEG-XS codec upgrade required4
    • 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps

Audio

Uncompressed PCM (~1 Mbps/ch)

Latency

Less than a 1/4 frame (<4 ms)

Network
Network standard RJ45 providing 1 GbE or 2.5 GbE Base-T Ethernet

IP addressing
  • IPv4
  • IPv6 1
  • DHCP (default) and static IP

Supported protocols
  • SMPTE ST 2110 (-10, -20, -22, -30, -40)
  • SMPTE 2059 (-1, -2)
  • IPMX

Redundancy

Yes (ST 2022-7)

Command and control

HTTPS over TCP

Discovery, registration and control

NMOS discovery and control according to standards IS-04 v 1.2 and 1.3 and IS-05 1.0 and 1.1
PoE+ Yes (IEEE 802.3at Type 2)

Physical

Product dimensions

7.13 (D) x 7.53 (W) x 1.42 (H) inches
181 (D) x 191 (W) x 36 (H) mm

Unit weight

1.47 lbs / 665 g

Cooling

Fanless

Power

  • Device: Input: 12 volts, max 18 Watts

  • PoE+

  • Optional PSU (sold separately)

  • Line Voltage: 100-240 V a.c., 0.5A

  • Frequency: 50-60 Hz

  • Input: IEC320-C14

  • Output: DIN4 locking power connector

Hardware and Software

Hardware included

ConvertIP DRS appliance

Optional hardware

ConductIP NMOS-based routing solution (Part #: CDCTIP-MRA2Y)
Accessories (sold separately)

  • ConvertIP power supply unit (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK)5

  • Rackmount kit (Part #: RMK-19TR-A)6
