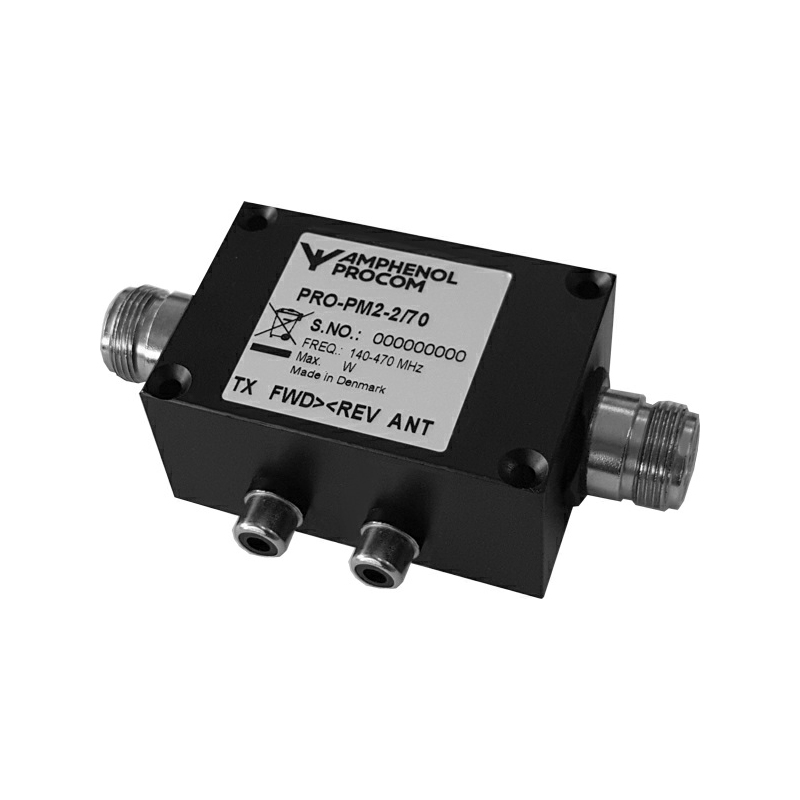

PRO-PM2-2/70-1 W
Bi-directional Power Monitors
Description
- Compact bi-directional power monitor for the frequency range 140 – 470 MHz.
- PRO-PM2-2/70 is adjusted to give 2 V ±0.5 V at 470 MHz and 1 W input power.
- Typical values of the Tx FWD DC voltage as a function of frequency at 1 W input power is shown in the figure below.
- The technology used can generate 2. harmonic. Therefore, it is recommended to use low pass filtering on the output.
- All pro-pm units are designed for single carrier signal per port and thus it is not recommended to add a multiple carrier signal on the input ports.
