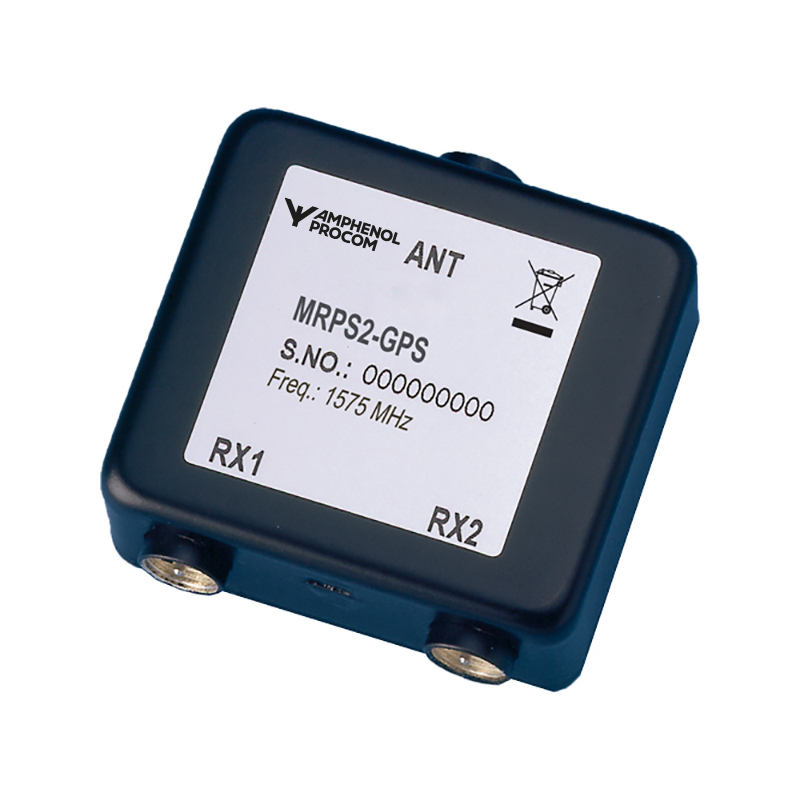

MRPS2-GPS-...
Miniature Receiver Power Splitter
Description
- Miniature receiver power splitter.
- Large frequency range: 1475 MHz to 1675 MHz.
- High isolation between outputs: > 20 dB.
- To be used where RF-signals, especially GPS-signals, shall be divided or combined:
- more receivers connected to the same coaxial cable
- more GPS-antennas on the same coaxial cable
- spectrum analyzer and GPS-receiver on the same coaxial cable.
- FME-male on all ports.
- DC pass from Rx ports to ANT port, see Ordering Designation.
- Low weight.
- Two mounting options available:
- Dual-adhesive pad for quick installation.
- Mounting brackets with ø3.2 mm holes for screw mounting.
