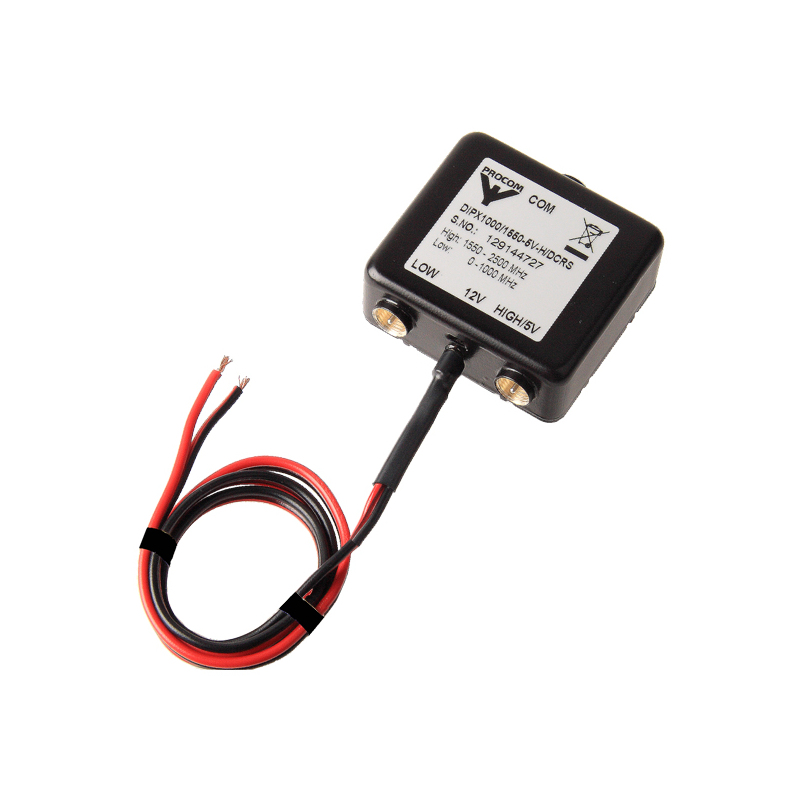

DIPX 1000/1550-5V-H/DCRS
Diplexer for the 0 – 1000 MHz and 1550 – 2500 MHz ranges with built-in GPS antenna power supply
Description
- Diplexer for splitting a combined GPS and TETRA radio signal or combining a GPS and a TETRA radio signal on a common line.
- Allows you to connect a separate TETRA antenna and a GPS antenna to a common radio port.
- 5V DC power supply on the HIGH port to supply power to an active GPS antenna.
- Built-in 12V to 5V converter.
- Extremely low RF insertion loss.
- High isolation between the two antenna ports.
- Wide-band coverage on the antenna ports:
- LOW (radio): 0 – 1000 MHz.
- HIGH (GPS): 1550 – 2500 MHz.
- FME-male RF connectors.
- 12 V DC connection with 1m red/black two-wire cable.
- Easy installation with the mounted double-sided adhesive pad.
