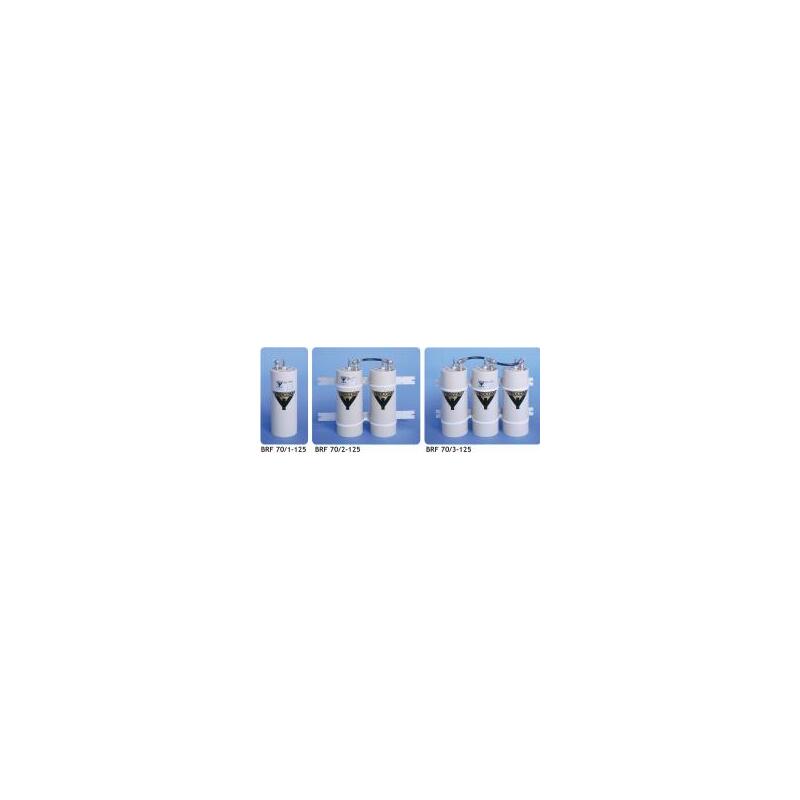

BRF 70/…-125
Band-Reject Filters for the 450 MHz Band
Description
- High power base station band-reject filters for the 380 – 470 MHz range.
- The use of large ø125 mm cavities means a high Q, resulting in a very narrow notch bandwidth.
- The large dimensions also mean a high power rating.
- Unloaded Q of a single cavity is approx. 4500.
- High frequency stability on temperature and power.
- 19” mounting brackets are available as an option.
