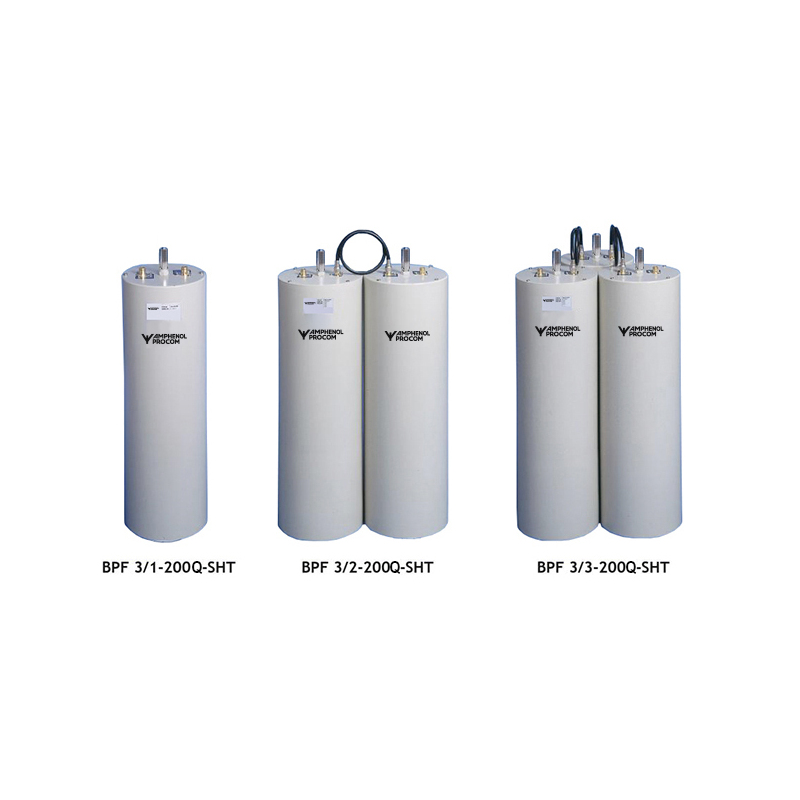

BPF 3/…-200Q-SHT
Band-Pass Filter for the 130 MHz Band
Description
- High-power base station shortened band-pass filter for the 118 – 136 MHz range.
- During trimming, the threaded rod will externally remain at the same position – especially beneficial when the cavity is fitted in tight locations (e.g. in racks).
- Due to the use of large ø200 mm cavities a high Q is achieved, resulting in a very narrow passband.
- The large dimensions also mean a high power rating.
- The SHT-version has only 600 mm cavity length.
- Unloaded Q of a single cavity is approx. 3000.
- High frequency stability on temperature and power.
- 19” mounting brackets are available as an option.
