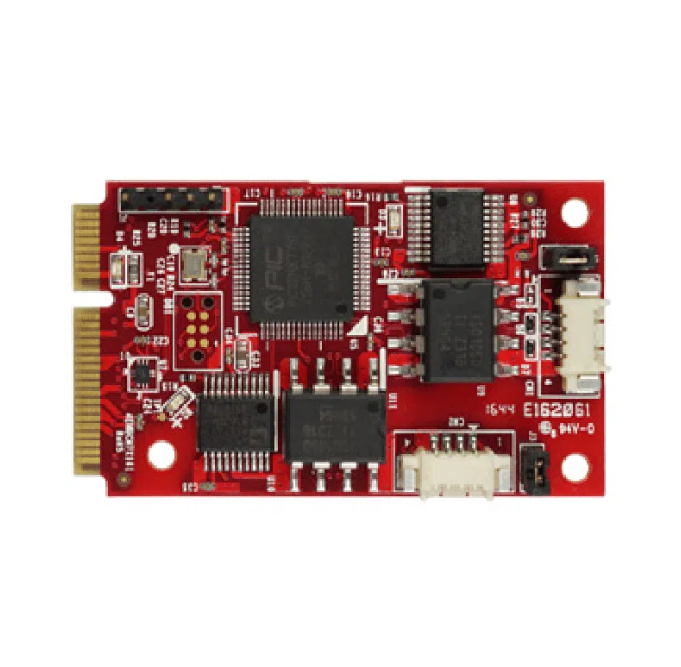

EMUC-B202
USB to dual isolated CAN bus 2.0B/ J1939/ CANopen
Description
CANbus 2.0B backward compatible with 2.0
Support baud rate 100/125/250/500(default)/800/1000K
Support CAN message acceptance filter
Keep configuration after hardware reboot
Up to 6000 CAN messages per second (receive data)
Additional driver to support Linux SocketCAN
Termination resistor enabled/disabled by jumper
Complies with EN61000-4-5 2.5kV Surge protection
Support Listen-only mode
Support SAE J1939/CANopen high layer protocol (Optional)
Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV
HiPOT protection
Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Supports 3rd mounting hole and USB Pin header for out-ofminicard installation
30μ” golden finger, 3-year warranty
Supports -40 to +85 degrees
