TKIT-SDT2-S

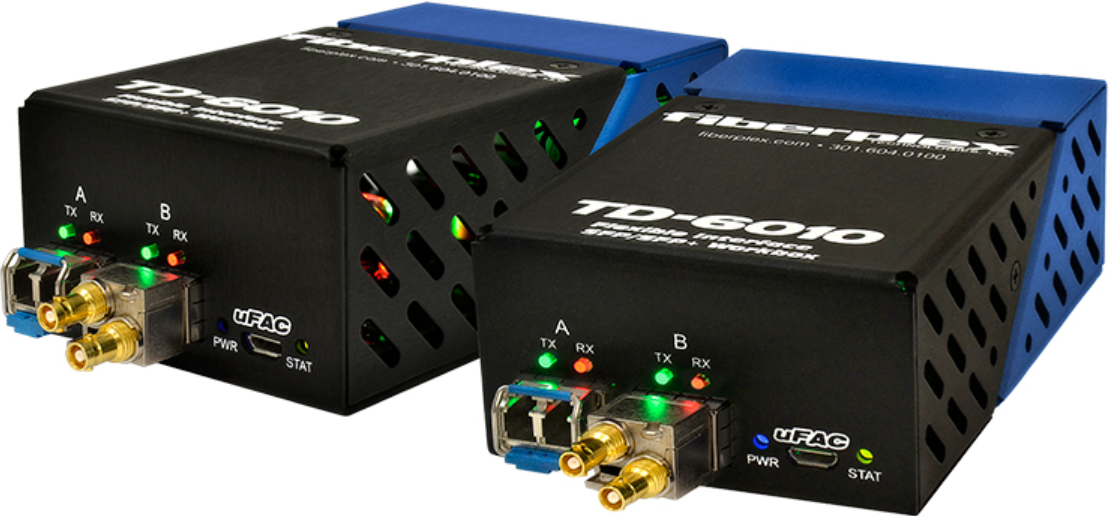

TD-6010 (Pair) Composite Video to Singlemode Optical Conversion, Dual Channel, Video Optimized, 1310nm, LC, 20km, Includes AC Power Adapters
Description
Features
- SDI-Analog presented over HD-BNC™ 75Ω coax
- SMPTE 259M-C compliant
- Supports composite standards: NTSC M, NTSC J, NTSC 4.43; PAL B/G/H/I/D, PAL M,
- Rx Channel is a 10-bit Composite to SD-SDI video decoder with 4x Oversampling (54Mhz) and Test Pattern Generation
- Tx Channel is a SD-SDI to Composite 10-bit video encoder with up to 16x Oversampling (216Mhz)
- Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
- AC Power Adapter Included
